SKU: 1885786
4,98EUR
Price without VAT
Stock
ManufacturerABB
Catalog number2CDS251025R0255

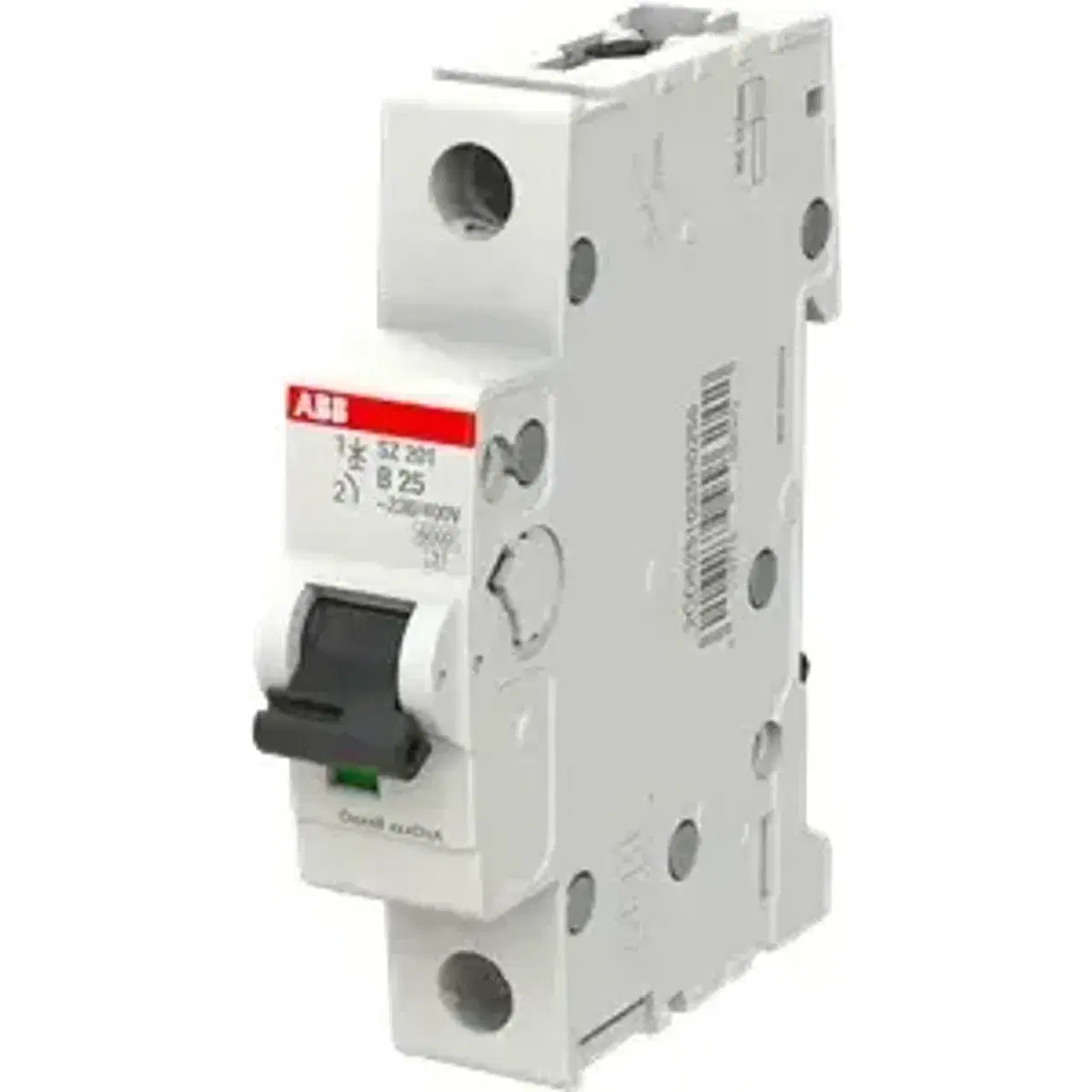

Product typeSZ201-B25
EAN code4016779996242
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Release characteristicB
Number of poles (total)1
Number of protected poles1
Rated current25A
Rated insulation voltage Ui440V
Rated voltage230V
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Voltage typeAC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Frequency50 - 60Hz
Current limiting class3
Suitable for flush-mounted installation✗ No
Flush-mounted installation✗ No
Over voltage category3
Pollution degree3
Concurrently switching neutral conductor✗ No
Additional equipment possible✓ Yes
Built-in depth69mm
Degree of protection (IP)IP2X
Width in number of modular spacings1
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired0 - 35mm²
Connectable conductor cross section solid-core0 - 25mm²
Explosion-proof✗ No
