Nema prevoda za ovaj jezik
SKU: 1885787
5,10EUR
Price without VAT
Stock

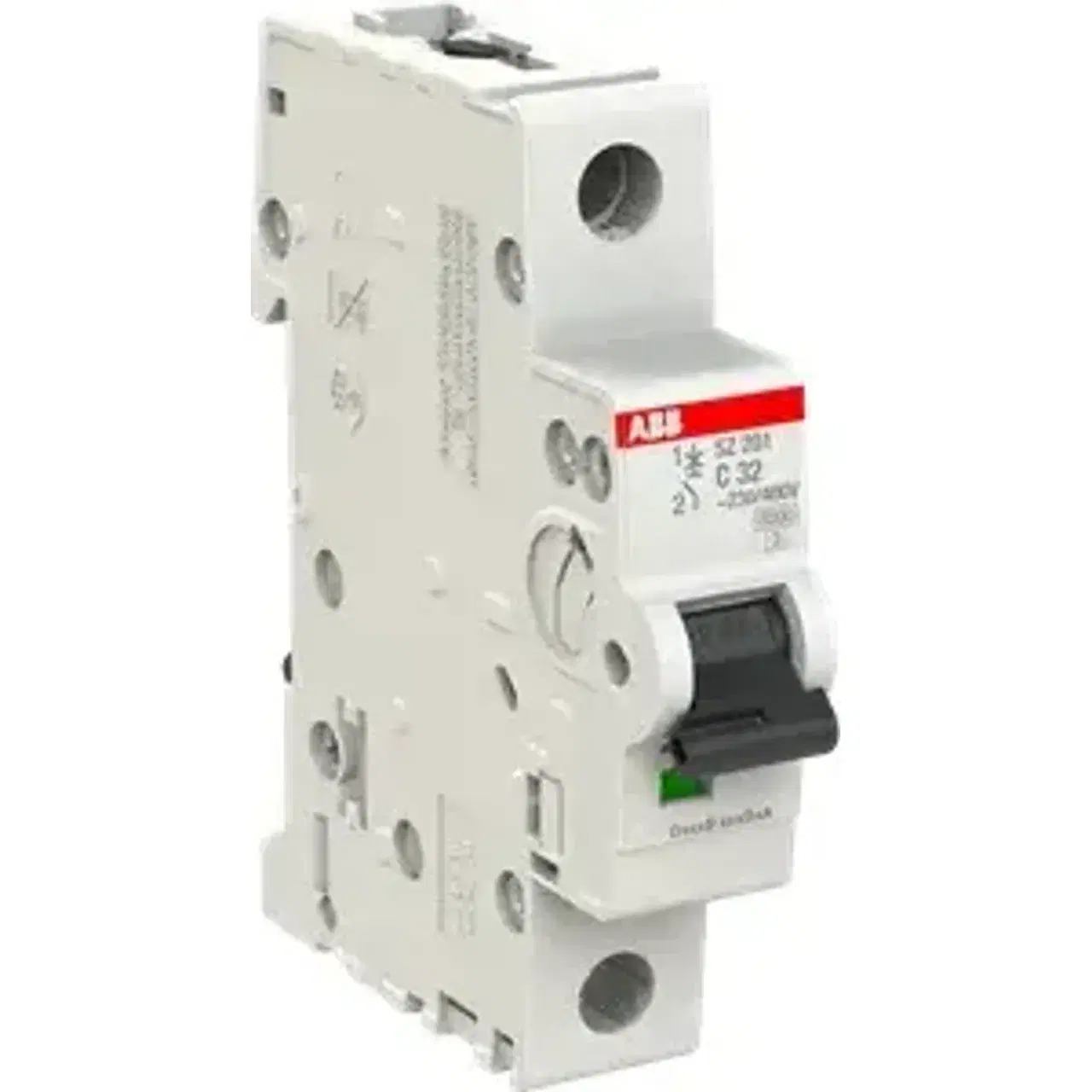

ManufacturerABB
Catalog number2CDS251025R0324
EAN code4053546038590
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Release characteristicC
Number of poles (total)1
Number of protected poles1
Rated current32A
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Voltage typeAC
Frequency50 - 60Hz
Current limiting class3
Flush-mounted installation✗ No
Pollution degree2
Concurrently switching neutral conductor✗ No
Built-in depth69mm
Degree of protection (IP)IP20
Width in number of modular spacings1
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proof✗ No
