Nema prevoda za ovaj jezik
SKU: 1997073
21,95EUR
Price without VAT
Stock

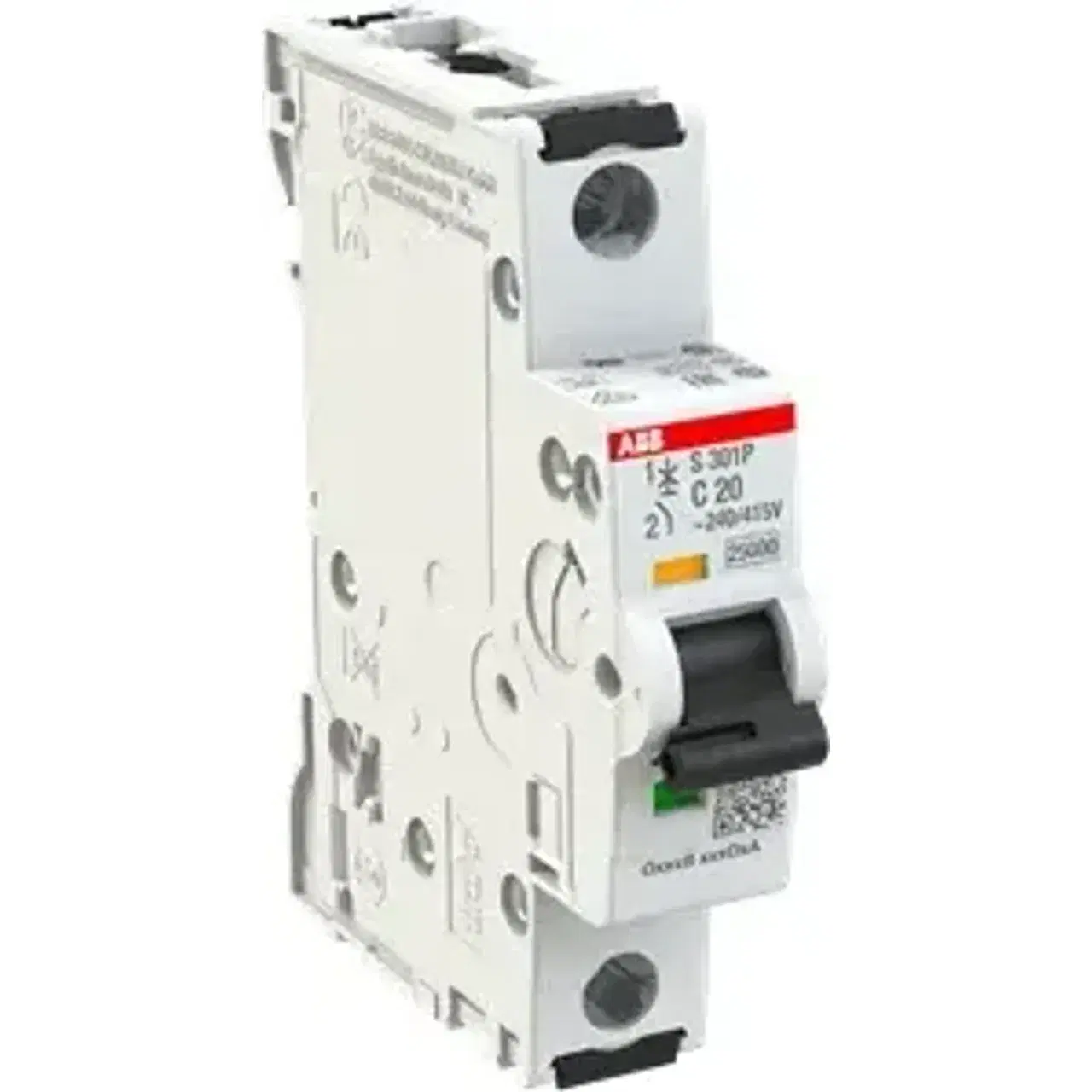

ManufacturerABB
Catalog number2CDS381001R0204
EAN code4016779080408
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Built-in depth69mm
Release characteristicC
Number of poles (total)1
Number of protected poles1
Rated current20A
Rated voltage240V
Rated insulation voltage Ui500V
Rated impulse withstand voltage Uimp6kV
Voltage typeOther
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Frequency50 - 60Hz
Power loss2.3W
Flush-mounted installation✗ No
Concurrently switching neutral conductor✗ No
Over voltage category4
Pollution degree3
Additional equipment possible✓ Yes
Width in number of modular spacings1
Degree of protection (IP)IP20
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proof✗ No
