SKU: 1997221
40,07EUR
Price without VAT
Stock

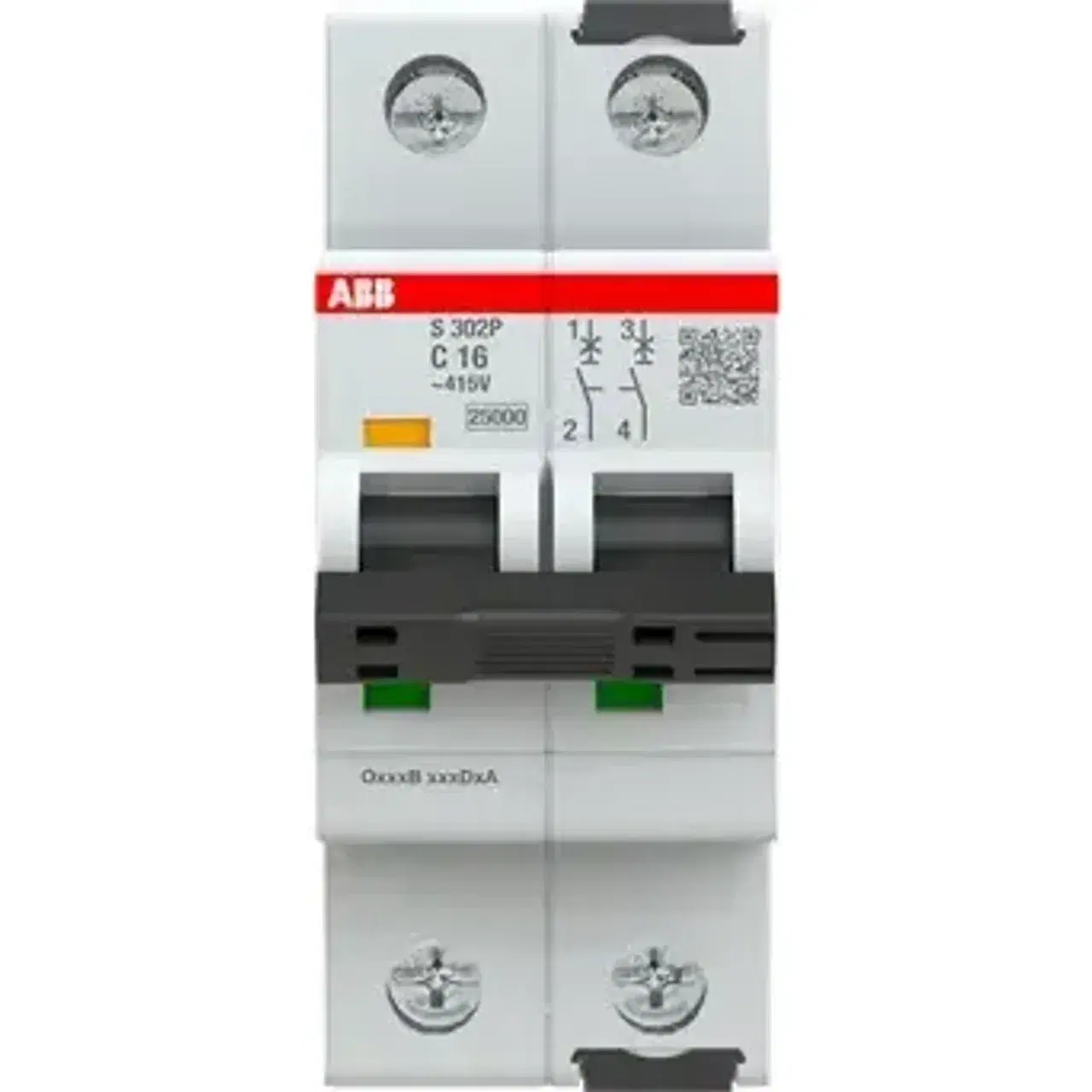

ManufacturerABB
Catalog number2CDS382001R0164
EAN code4016779078856
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Built-in depth69mm
Release characteristicC
Number of poles (total)2
Number of protected poles2
Rated current16A
Rated voltage415V
Rated insulation voltage Ui500V
Rated impulse withstand voltage Uimp6kV
Voltage typeOther
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Frequency50 - 60Hz
Power loss3.4W
Flush-mounted installation✗ No
Concurrently switching neutral conductor✗ No
Over voltage category4
Pollution degree3
Additional equipment possible✓ Yes
Width in number of modular spacings2
Degree of protection (IP)IP20
Ambient temperature during operating-40 - 70°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proof✗ No
