SKU: 1885801
15,24EUR
Price without VAT
Stock
ManufacturerABB
Catalog number2CDS253025R0165

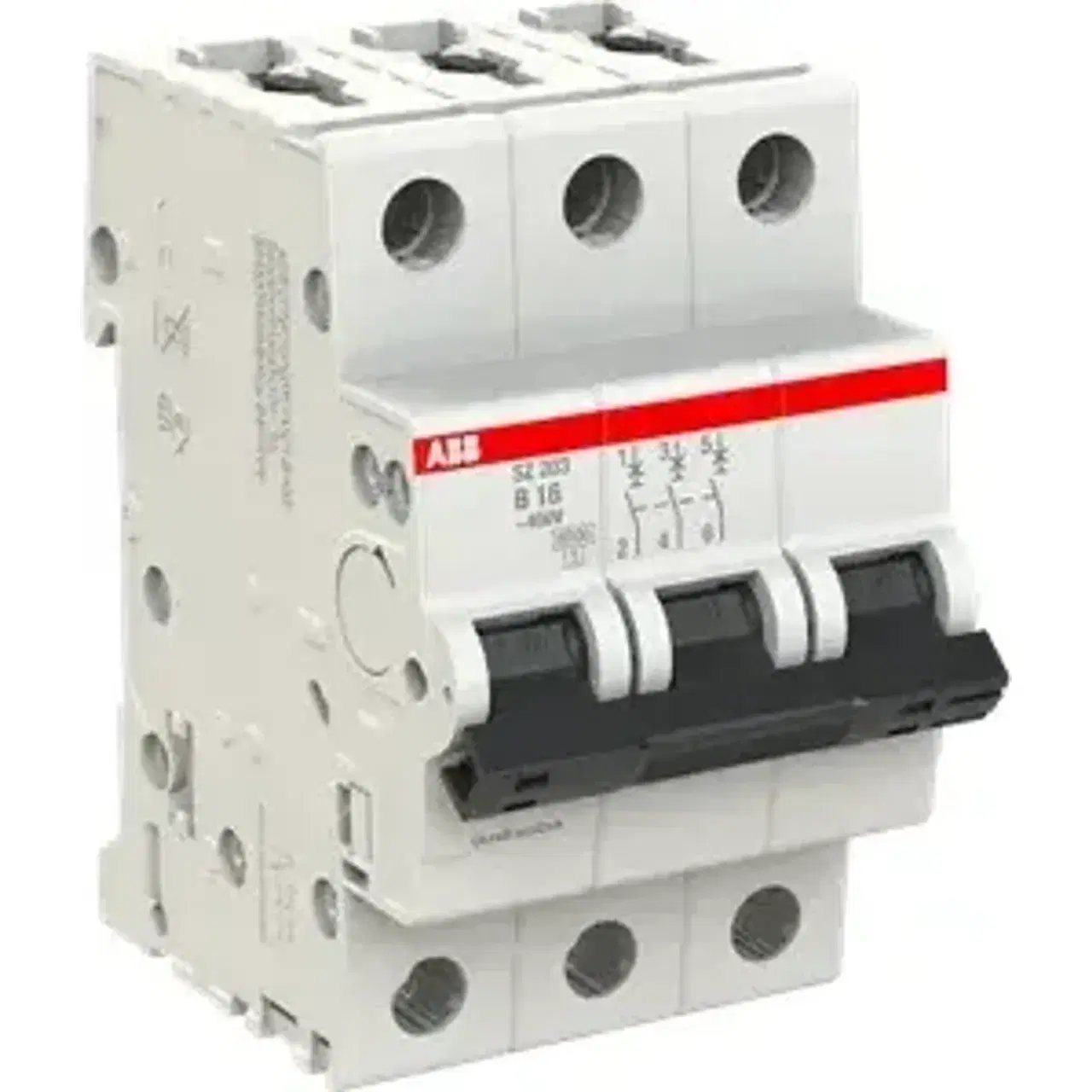

Product typeSZ203-B16
EAN code4016779996686
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Built-in depth35mm
Release characteristicB
Number of poles (total)3
Number of protected poles3
Rated current16A
Rated voltage400V
Rated insulation voltage Ui400V
Rated impulse withstand voltage Uimp400kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V6kA
Frequency50 - 60Hz
Current limiting class16
Flush-mounted installation✗ No
Over voltage category400
Concurrently switching neutral conductor✗ No
Pollution degree2
Additional equipment possible✓ Yes
Width in number of modular spacings3
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proof✗ No
