SKU: 1661223
96,27EUR
Price without VAT
Stock
ManufacturerABB
Catalog number2CDS253001R0824

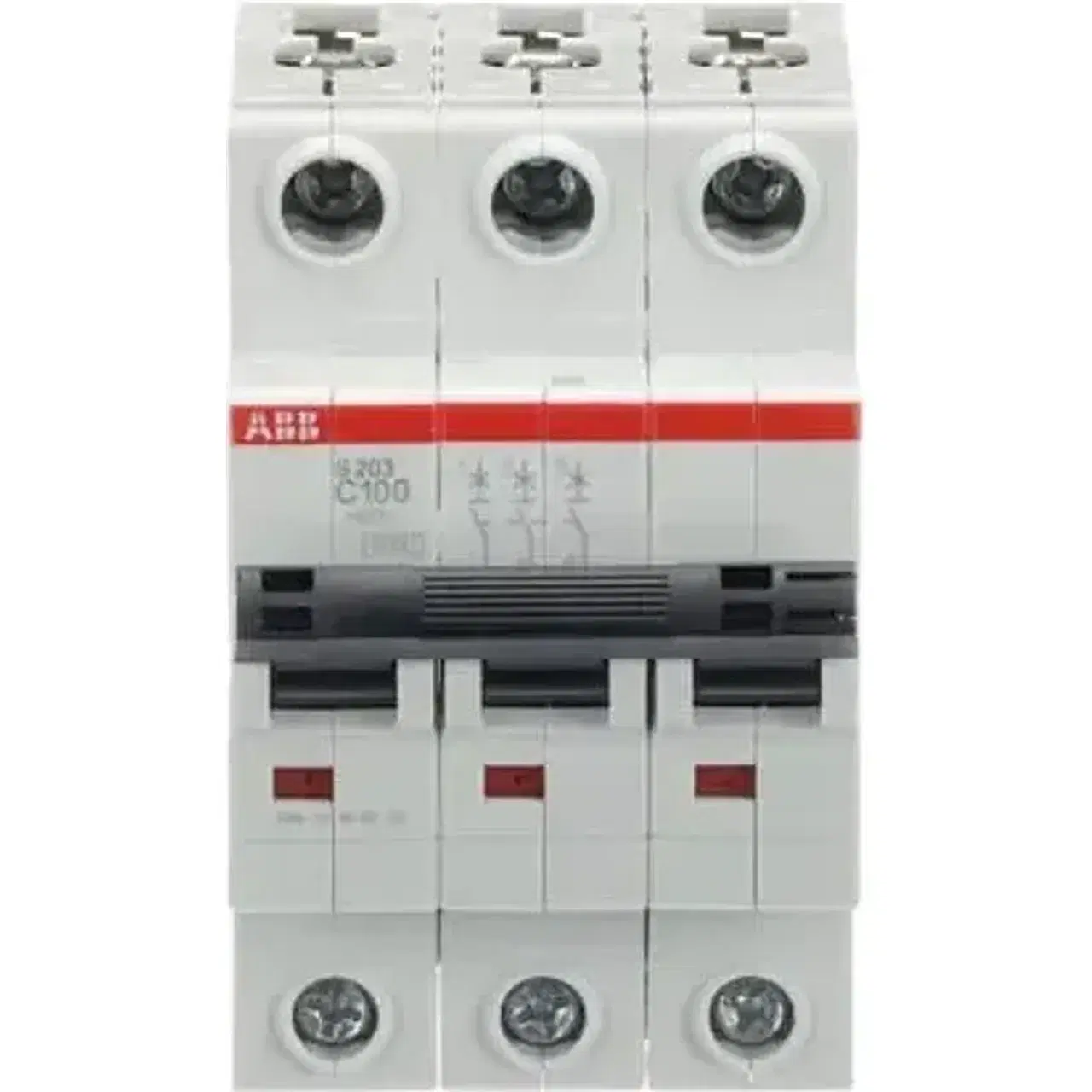

Product typeS203-C100
EAN code4016779916288
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Built-in depth69mm
Release characteristicC
Number of poles (total)3
Number of protected poles3
Rated current100A
Rated voltage400V
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V20kA
Frequency50 - 60Hz
Suitable for flush-mounted installation✗ No
Current limiting class3
Concurrently switching neutral conductor✗ No
Over voltage category3
Pollution degree3
Additional equipment possible✓ Yes
Width in number of modular spacings3
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired0 - 50mm²
Connectable conductor cross section solid-core0 - 50mm²
