Nema prevoda za ovaj jezik
SKU: 1885802
16,47EUR
Price without VAT
Stock

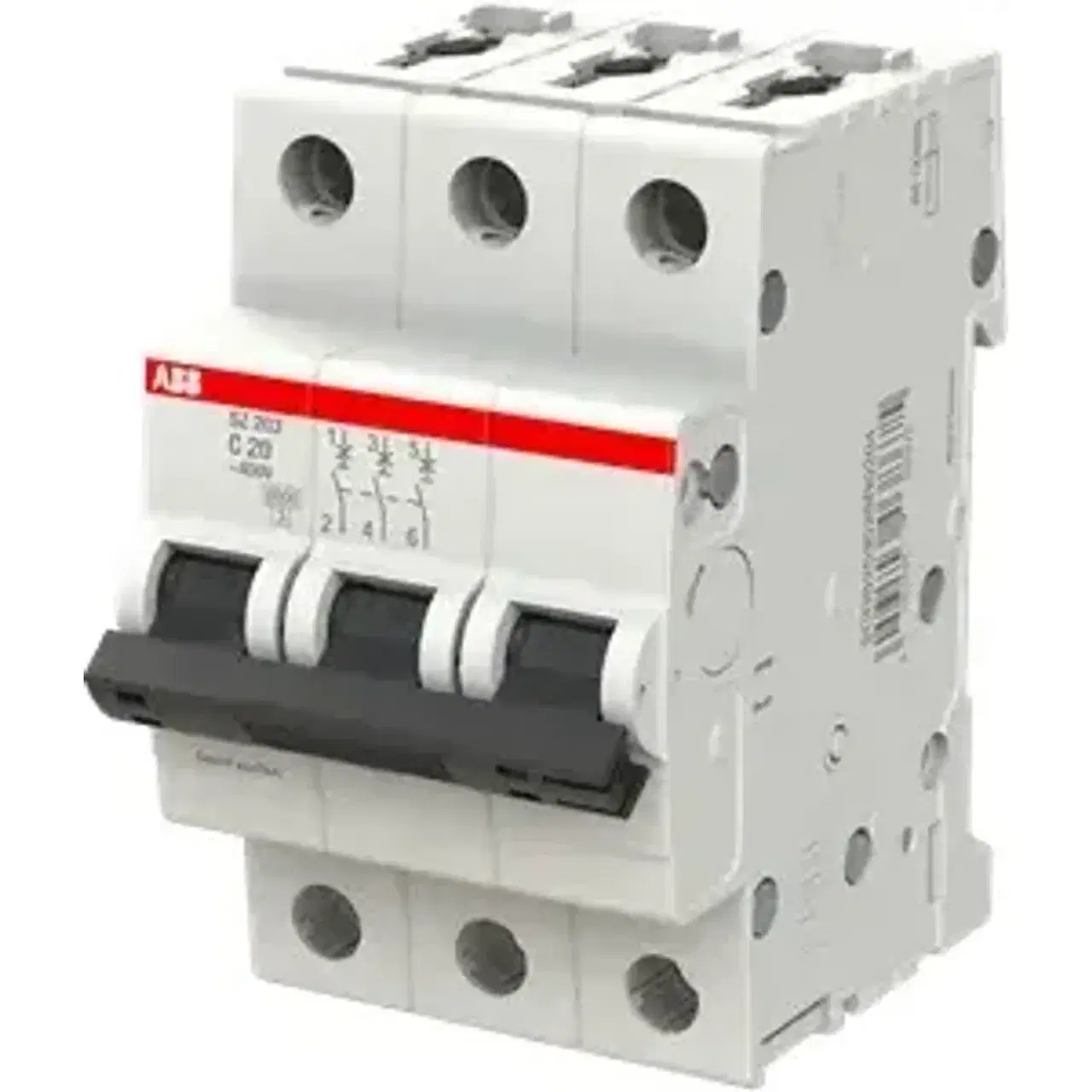

ManufacturerABB
Catalog number2CDS253025R0204
EAN code4053546038996
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Built-in depth69mm
Release characteristicC
Number of poles (total)3
Number of protected poles3
Rated current20A
Rated voltage400V
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Frequency50 - 60Hz
Current limiting class3
Flush-mounted installation✗ No
Concurrently switching neutral conductor✗ No
Over voltage category3
Pollution degree2
Additional equipment possible✓ Yes
Width in number of modular spacings3
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Explosion-proof✗ No
