SKU: 1524810
43,91EUR
Price without VAT
Stock
ManufacturerABB
Catalog number1SCA105004R1001

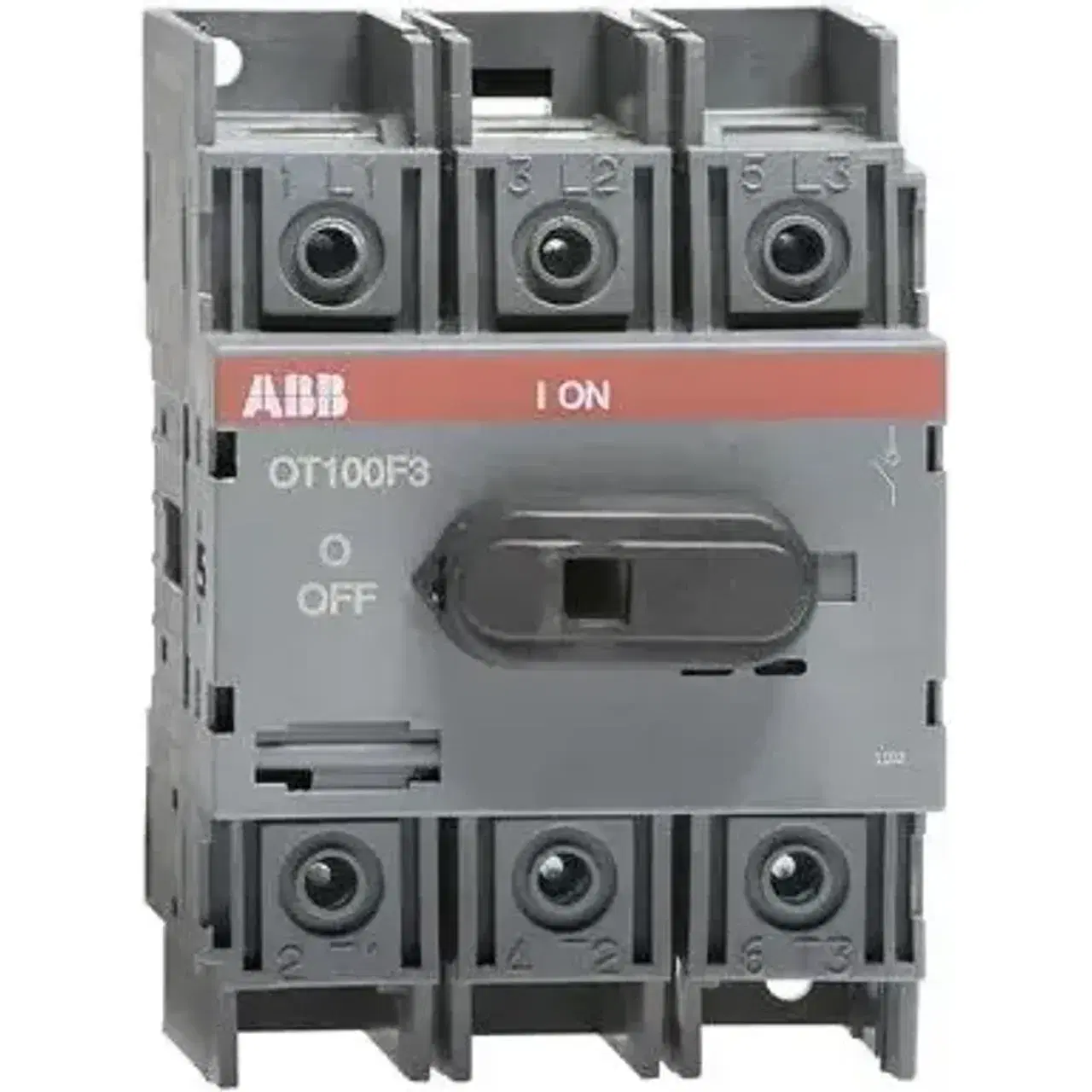

Product typeOT100F3
EAN code6417019391359
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Version as main switch✓ Yes
Version as maintenance-/service switch✓ Yes
Version as safety switch✗ No
Version as emergency stop installation✗ No
Version as reversing switch✗ No
Number of switches1
Max. rated operation voltage Ue AC750V
Rated operating voltage750 - 750V
Rated permanent current Iu100A
Rated permanent current at AC-23, 400 V80A
Rated permanent current at AC-21, 400 V100A
Rated short-time withstand current lcw2.5kA
Rated operation power at AC-23, 400 V37kW
Switching power at 400 V37kW
Number of poles3
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Motor drive optional✗ No
Motor drive integrated✗ No
Voltage release optional✗ No
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mounting✓ Yes
Suitable for front mounting 4-hole✗ No
Suitable for front mounting centre✗ No
Suitable for distribution board installation✓ Yes
Colour control elementBlack
Type of control elementShort thumb-grip
Interlockable✗ No
Type of electrical connection of main circuitScrew connection
Degree of protection (NEMA)1
Degree of protection (IP), front sideIP20
