Nema prevoda za ovaj jezik
SKU: 1893264
1151,50EUR
Price without VAT
Stock
ManufacturerABB
Catalog number1SDA100397R1

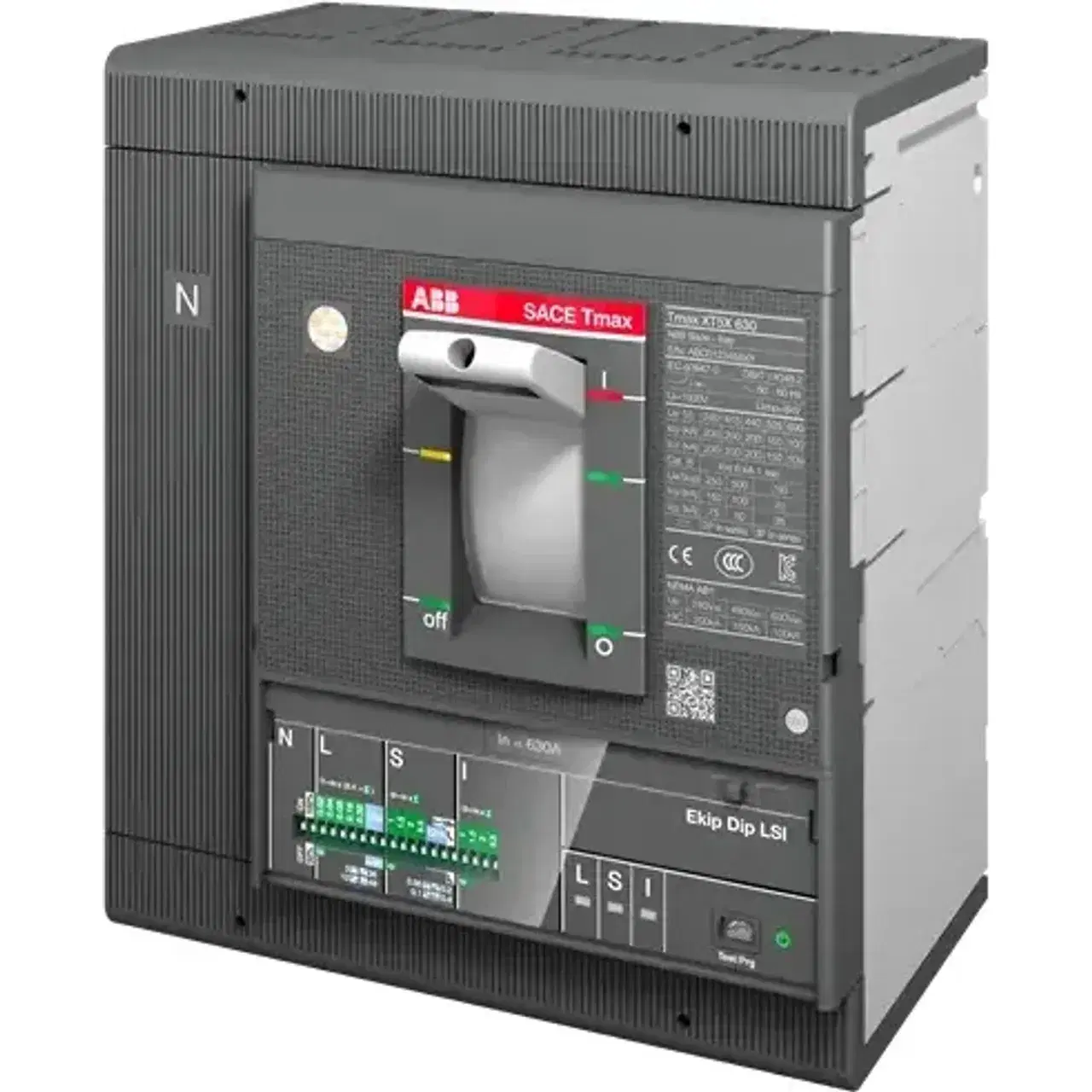

Product typeXT5N 630 Ekip Dip LS/I In=630 4p F F
EAN code8056221004749
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Rated permanent current Iu630A
Rated voltage220 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz36kA
Overload release current setting252 - 630A
Adjustment range short-term delayed short-circuit release630 - 6300A
Adjustment range undelayed short-circuit release630 - 6300A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protection✗ No
Type of electrical connection of main circuitBolt connection
DIN rail (top hat rail) mounting optional✓ Yes
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicator✗ No
With integrated under voltage release✗ No
Number of poles4
Position of connection for main current circuitFront side
Type of control elementRocker lever
Complete device with protection unit✓ Yes
Motor drive integrated✗ No
Motor drive optional✓ Yes
Degree of protection (IP)IP20
