SKU: 1617944
392,20EUR
Price without VAT
Stock
ManufacturerABB
Catalog number2CMA100169R1000

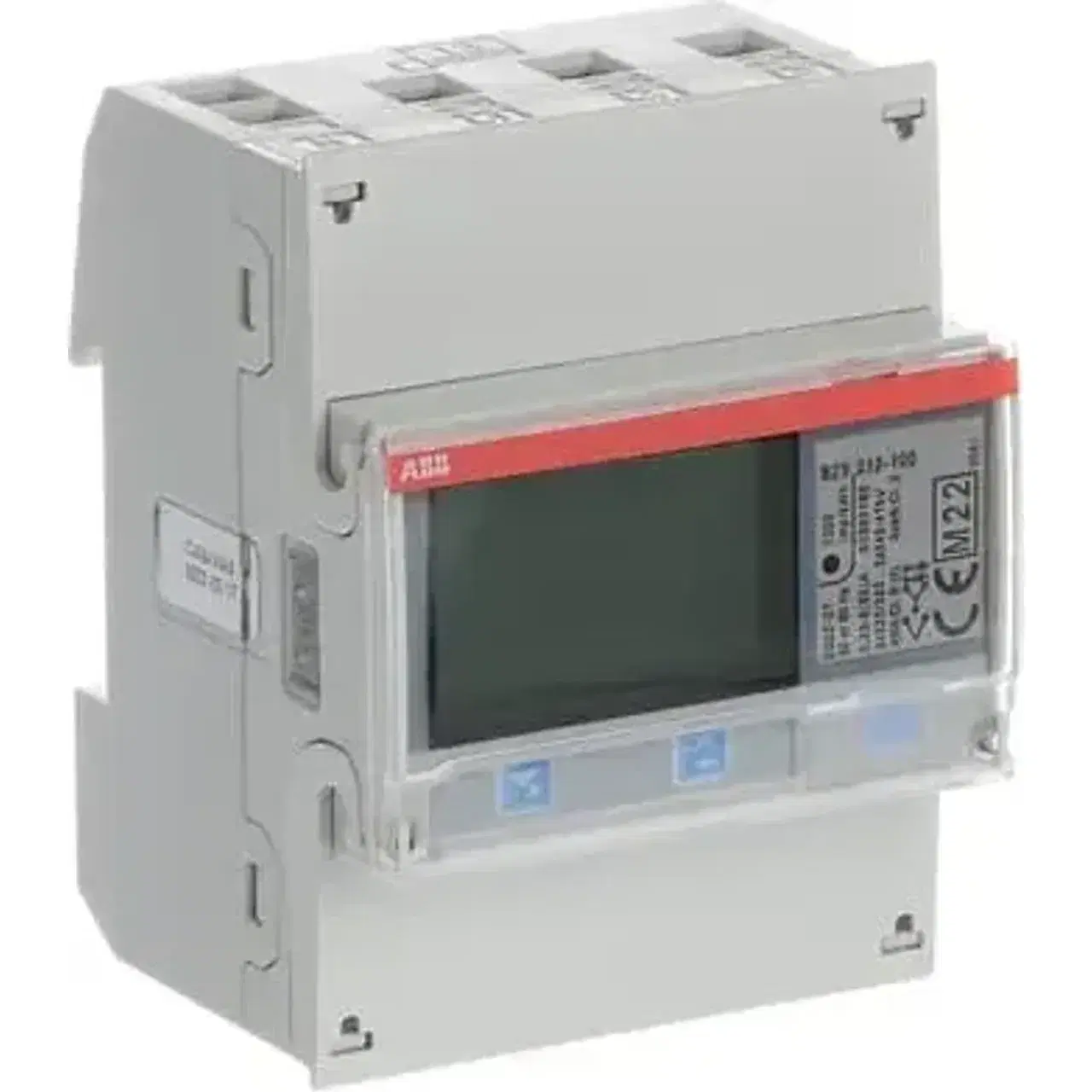

Product typeB23 312-100
EAN code7392696001694
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Type of meterElectronic
Nominal current (In)5A
Max. current (Imax)65A
Nominal voltage (Un) N-L220 - 240V
Nominal voltage (Un) L-L380 - 415V
Frequency50 - 60Hz
Accuracy classB
Pole typeFour conductor
ModelDirect measurement
Energy typeEffective power and blind power
Suitable forPurchase/supply
Tariff typeMulti-tariff
Tariff controlExternal
Measurement type load profile✗ No
Escapement mechanism✓ Yes
Calibrated✓ Yes
ApprovalMeasuring Instruments Directive
Pulse outputElectrical
Pulse typeS0
Pulse rate1 - 999999Imp/kWh (kvarh)
Type of indicationDigital
Mounting methodDRA (DIN-rail adapter)
Width in number of modular spacings4
Type of interfaceModbus
EEC40 signature✗ No
With lock code✗ No
Number of positions total (counter)7
Degree of protection (IP)IP20
Degree of protection (NEMA)Other
