Nema prevoda za ovaj jezik
SKU: 1938068
169,56EUR
Price without VAT
Stock
ManufacturerABB
Catalog number2CTB812050R1000

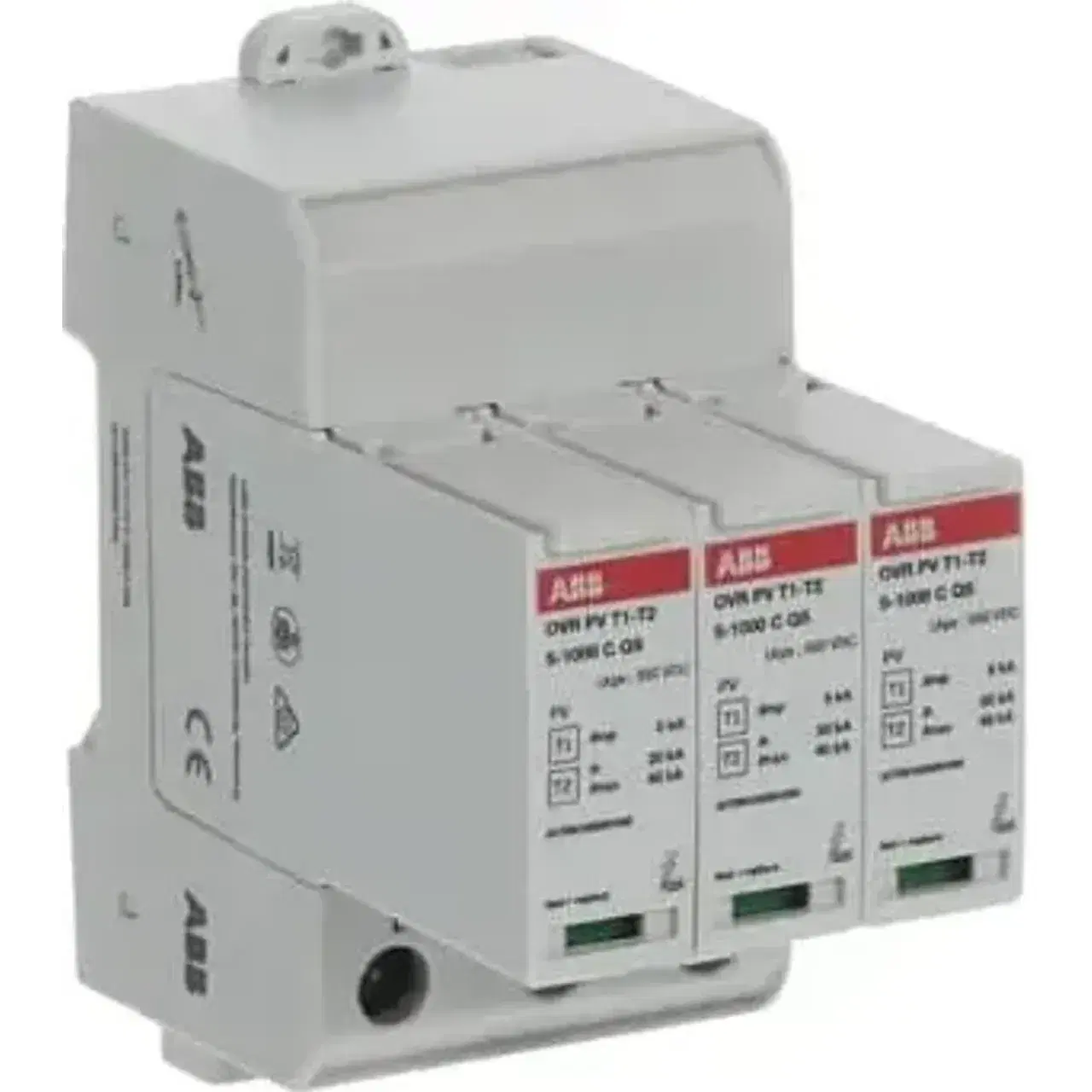

Product typeOVR PV T1-T2 5-1000 P QS
EAN code4053546034615
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
System configuration DC✓ Yes
System configuration IT✗ No
System configuration TN✗ No
System configuration TN-C✗ No
System configuration TN-C-S✗ No
System configuration TN-S✗ No
System configuration TT✗ No
System configuration other✗ No
Number of conductors (without earthing)2
Nominal discharge surge current (8/20)20kA
Max. discharge surge current (8/20)40kA
Nominal voltage DC1000V
Max. continuous voltage AC1100V
Max. continuous voltage DC1000V
Max. PV-voltage1000V
Voltage protection level3.8kV
Short-circuit breaking capacity (Isccr)11kA
Integrated backup fuse✗ No
Mounting methodDIN rail (top hat rail) 35 mm
Construction size3 modular spacing
Max. conductor cross section solid (solid, stranded)35mm²
Max. conductor cross section flexible (fine-strand)25mm²
With remote signalling contact✗ No
Signalling at the deviceOptic
Category type 2✓ Yes
Degree of protection (IP)IP20
