SKU: 1543298
107,44EUR
Price without VAT
Stock

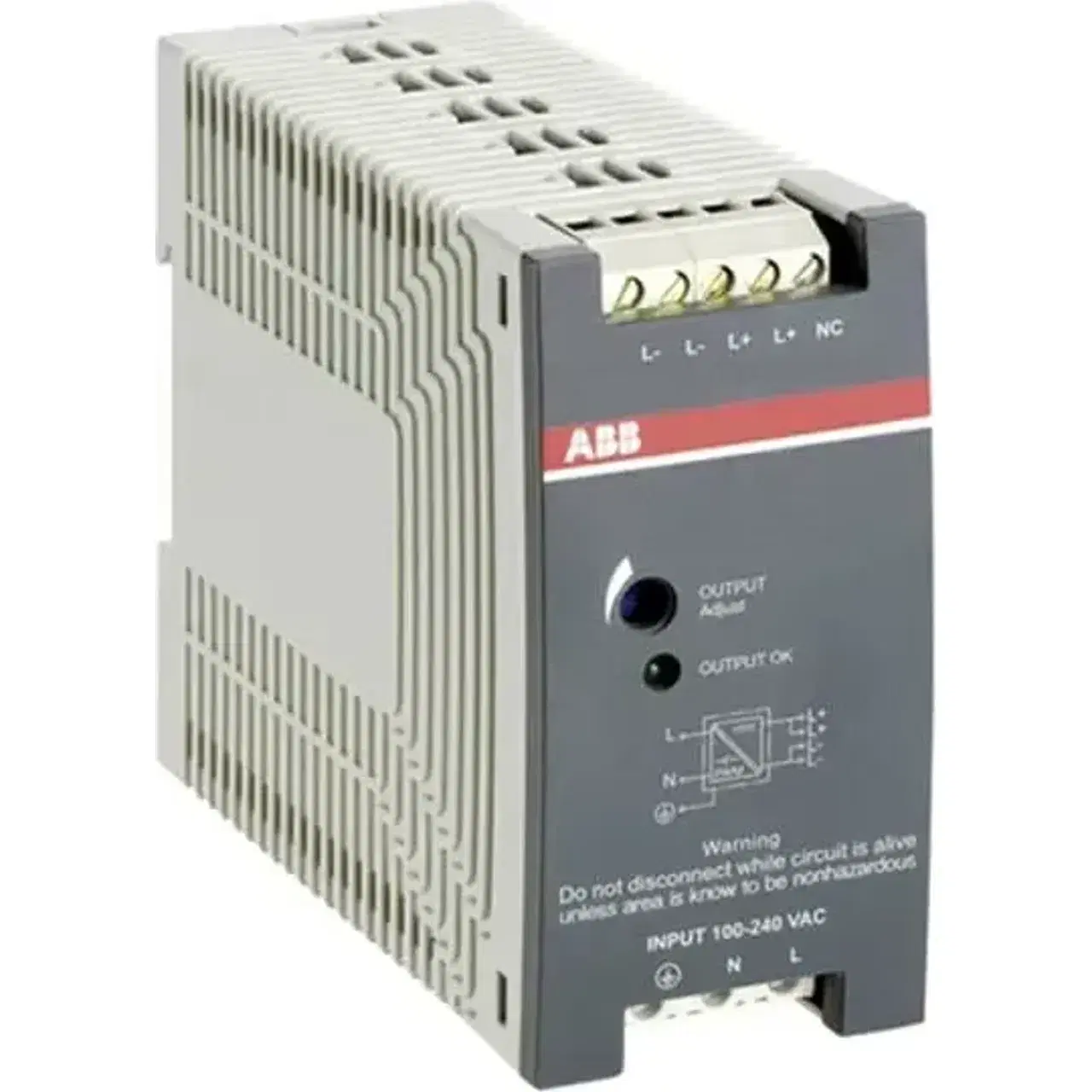

ManufacturerABB
Catalog number1SVR427032R0000
Product typeCP-E 24/2.5
EAN code4016779656887
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Voltage type of supply voltageAC/DC
1st secondary output voltage24 - 24V
2nd secondary output voltage0 - 0V
3rd secondary output voltage0 - 0V
Max. output current 12.5A
Max. output current 20A
Max. output current 30A
Secondary voltage adjustable✓ Yes
Nominal value output voltage 124V
Nominal value output voltage 20V
Nominal value output voltage 30V
Nominal value output current 12.5A
Nominal value output current 20A
Nominal value output current 30A
Short-circuit-proof✓ Yes
Rated supply voltage at AC 50 Hz85 - 264V
Rated supply voltage at AC 60 Hz85 - 264V
Rated supply voltage at DC90 - 375V
Output voltage stabilized✓ Yes
Power consumption69.2VA
Power output60W
Stabilized✓ Yes
Type of electric connectionScrew connection
Rail mounting possible✓ Yes
Wall mounting possible✗ No
Modular version✗ No
Built-in width40.5mm
Built-in height90mm
Direct mounting possible✗ No
Width40.5mm
Height90mm
Depth114mm
Suitable for safety functions✗ No
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
Degree of protection (IP)IP20
Degree of protection (NEMA)1
