SKU: 1749299
101,38EUR
Price without VAT
Stock
ManufacturerABB
Catalog number2CDG120037R0011

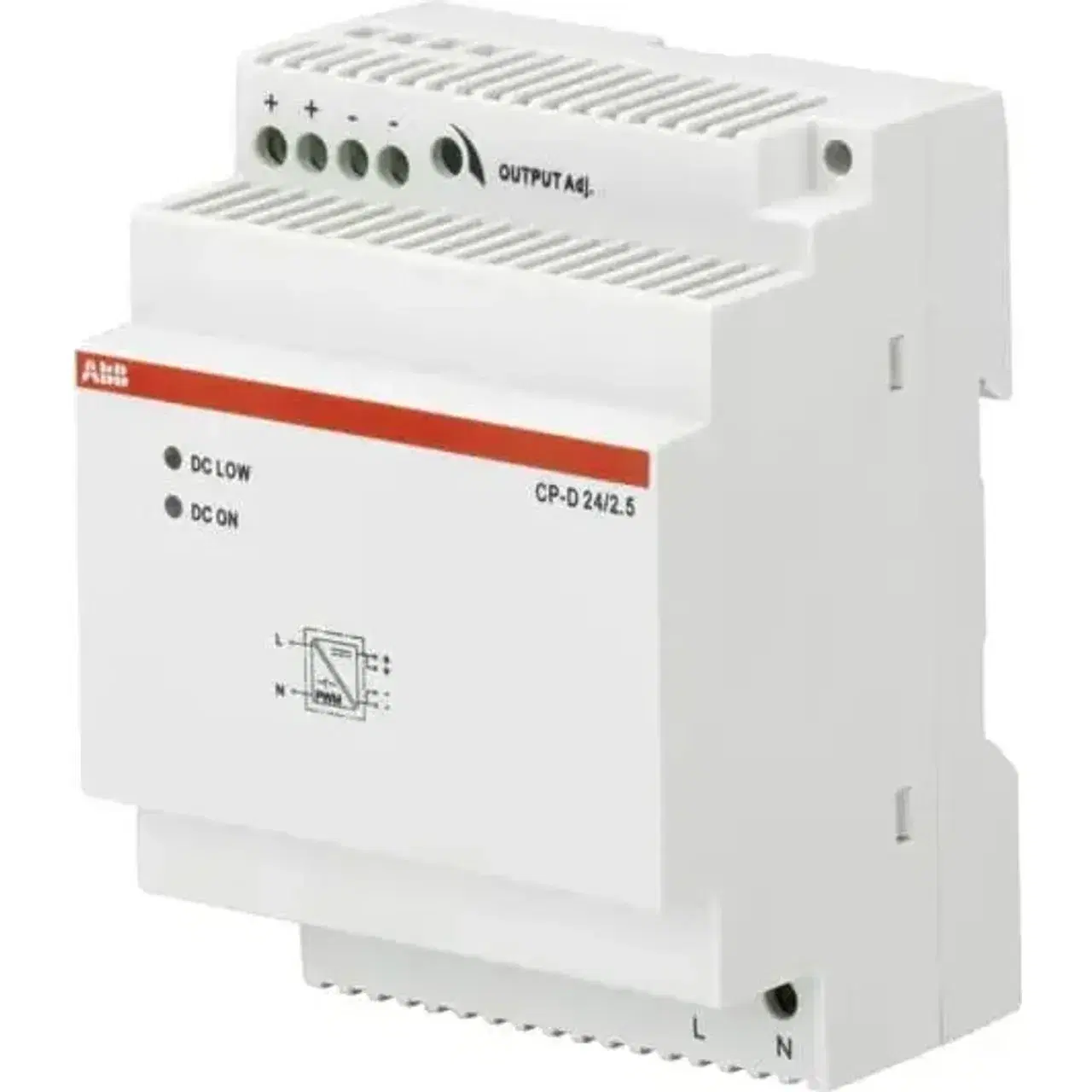

Product typeCP-D24/2.5
EAN code4016779697897
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Voltage type of supply voltageAC/DC
1st secondary output voltage24 - 24V
2nd secondary output voltage0 - 0V
3rd secondary output voltage0 - 0V
Max. output current 12.5A
Secondary voltage adjustable✓ Yes
Nominal value output voltage 124V
Nominal value output voltage 224V
Nominal value output current 12.5A
Short-circuit-proof✓ Yes
Rated supply voltage at AC 50 Hz100 - 240V
Rated supply voltage at AC 60 Hz100 - 240V
Rated supply voltage at DC0 - 0V
Output voltage stabilized✓ Yes
Power consumption70VA
Power output60W
Stabilized✓ Yes
Type of electric connectionScrew connection
Rail mounting possible✓ Yes
Wall mounting possible✗ No
Modular version✓ Yes
Width in number of modular spacings4
Built-in width71mm
Built-in height91mm
Direct mounting possible✓ Yes
Width71mm
Height91mm
Depth57.5mm
Suitable for safety functions✗ No
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
Degree of protection (IP)IP20
Degree of protection (NEMA)1
