SKU: 1856979
60,06EUR
Price without VAT
Stock
ManufacturerABB
Catalog number1SVR508160R0000

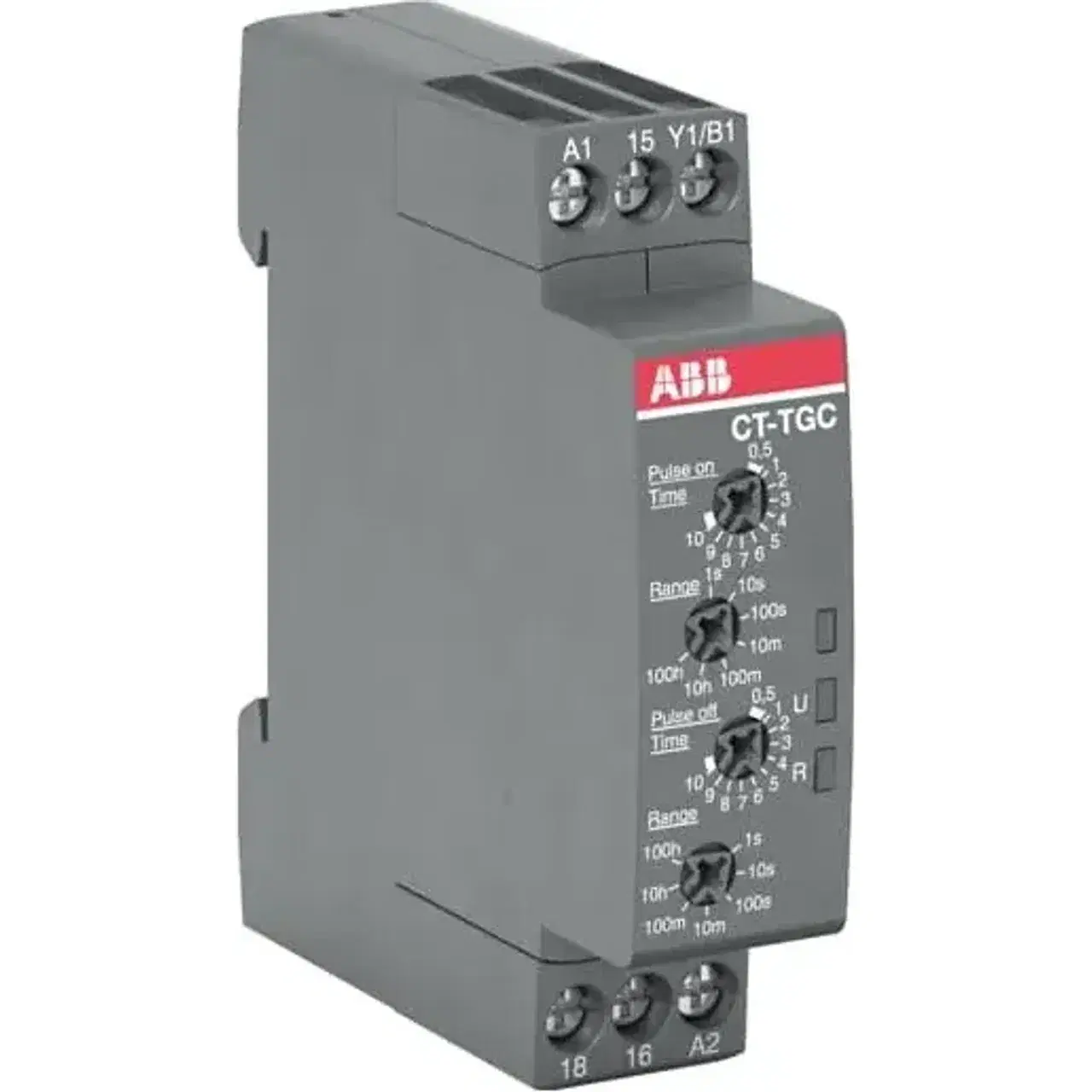

Product typeCT-TGC.12
EAN code4013614534263
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Type of electric connectionScrew connection
Complete with socket✗ No
Suitable for DIN rail (top hat rail) mounting✓ Yes
Pluggable on auxiliary contact block✗ No
Function floating contact on energization✗ No
Function delay-on energization✗ No
Function floating contact on de-energization✗ No
Function delay on de-energization✗ No
Function pulse shaping✗ No
With plug-in socket✗ No
Function star-delta✗ No
Function flashing, starting with pause, fixed time✓ Yes
Function flashing, starting with pulse, fixed time✓ Yes
Time range0.05 - 360000s
Clock function, starting with pause, variable✗ No
Remote operation possible✗ No
Clock function, starting with pulse, variable✗ No
Suitable as remote control✗ No
Rated control supply voltage Us at AC 50HZ24 - 240V
Rated control supply voltage Us at AC 60HZ24 - 240V
Rated control supply voltage Us at DC24 - 48V
Voltage type for actuatingAC/DC
Number of outputs, undelayed, normally closed contact0
Number of outputs, undelayed, normally open contact0
Number of outputs, undelayed, change-over contact0
Number of outputs, delayed, normally closed contact0
Outputs, reversible delayed/undelayed✗ No
Number of outputs, delayed, normally open contact0
Number of outputs, delayed, change-over contact1
Suitable for front mounting✗ No
With semiconductor output✗ No
Height70mm
Depth63mm
Nominal current4A
Width17.5mm
