SKU: 1015063
12,05EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number262700

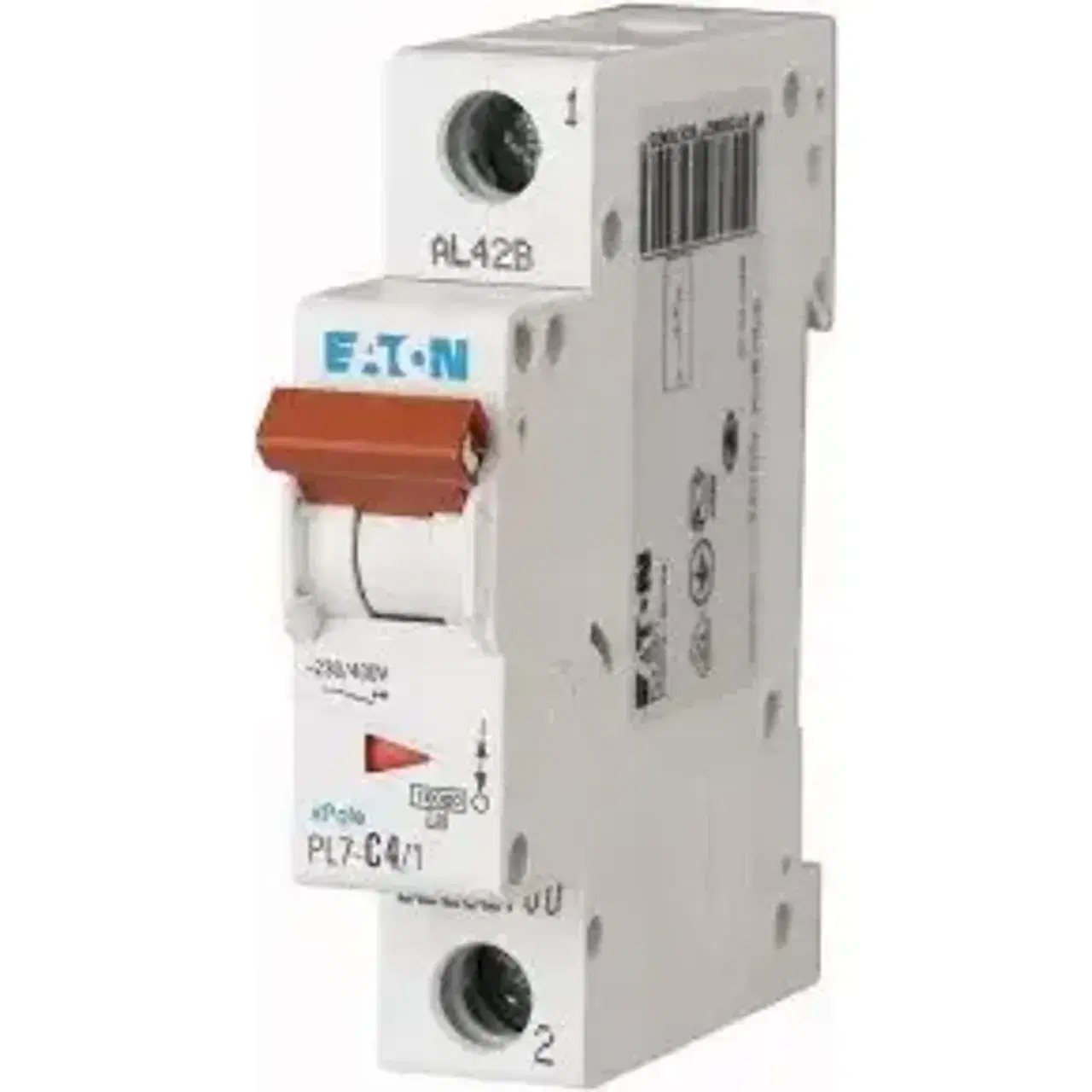

Product typePL7-C4/1
EAN code4015082627003
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Release characteristicC
Number of poles (total)1
Number of protected poles1
Rated current4A
Rated insulation voltage Ui440V
Rated voltage230V
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Voltage typeAC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Frequency50 - 60Hz
Current limiting class3
Suitable for flush-mounted installation✗ No
Over voltage category3
Pollution degree2
Concurrently switching neutral conductor✗ No
Built-in depth70.5mm
Additional equipment possible✓ Yes
Degree of protection (IP)IP20
Width in number of modular spacings1
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 25mm²
Explosion-proof✗ No
