SKU: 1015335
39,47EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number263414

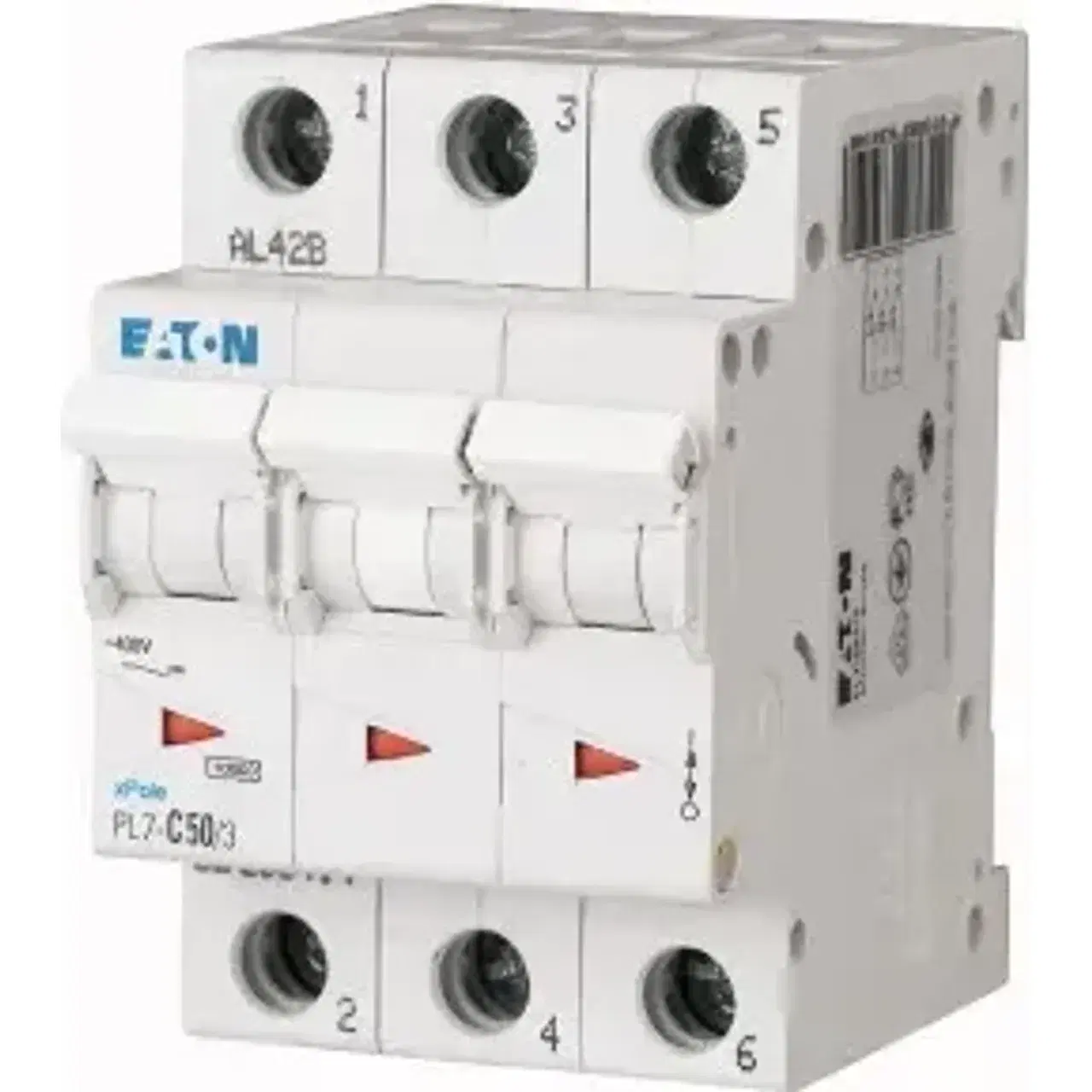

Product typePL7-C50/3
EAN code4015082634148
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Built-in depth70.5mm
Release characteristicC
Number of poles (total)3
Number of protected poles3
Rated current50A
Rated voltage400V
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Frequency50 - 60Hz
Suitable for flush-mounted installation✗ No
Power loss14.9W
Current limiting class3
Flush-mounted installation✗ No
Concurrently switching neutral conductor✗ No
Over voltage category3
Pollution degree2
Additional equipment possible✓ Yes
Degree of protection (IP)IP20
Width in number of modular spacings3
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 25mm²
Explosion-proof✗ No
