Nema prevoda za ovaj jezik
SKU: 1577885
40,62EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number167594

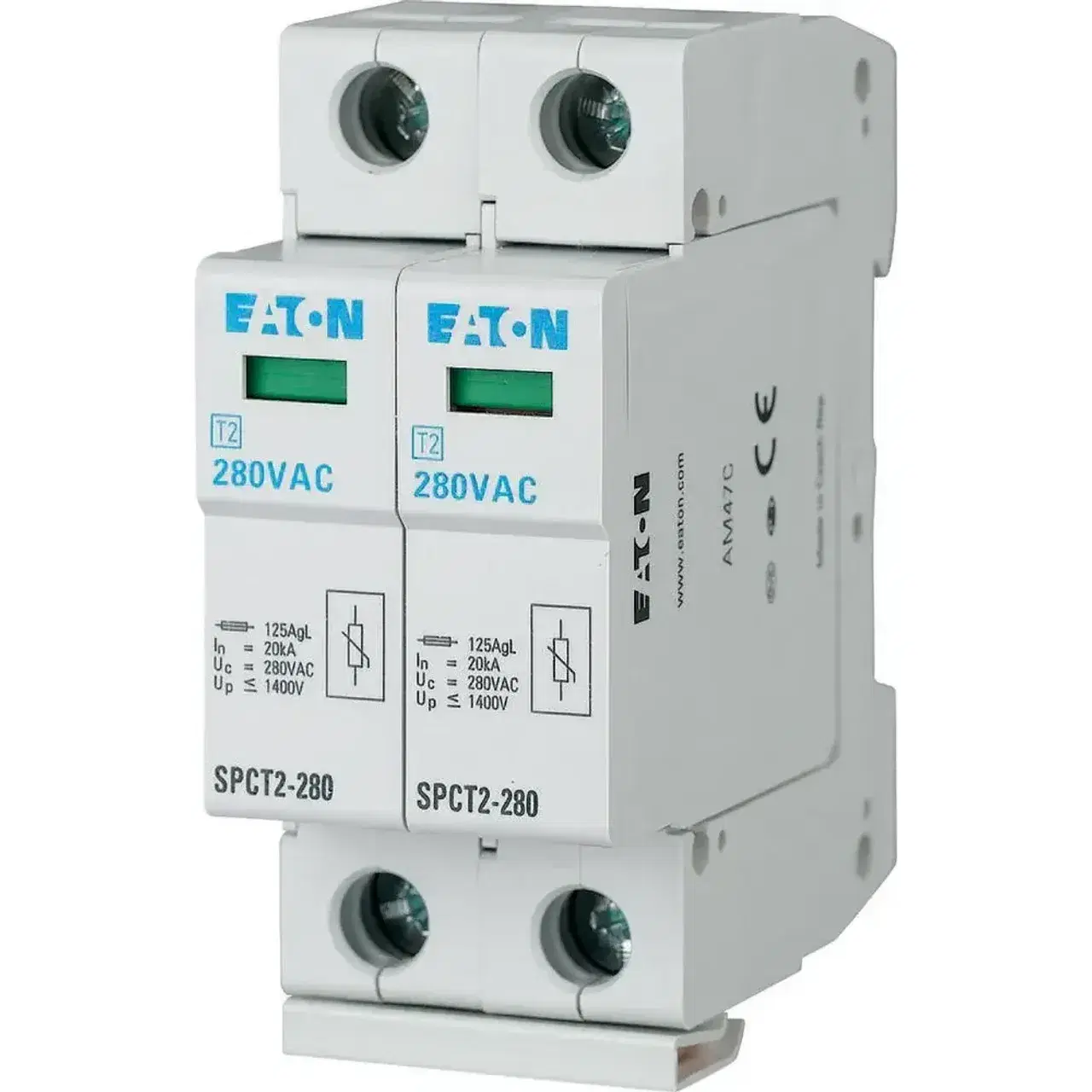

Product typeSPCT2-280/2
EAN code4015081640867
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
System configuration DC✗ No
System configuration IT✗ No
System configuration TN✓ Yes
System configuration TN-C✗ No
System configuration TN-C-S✗ No
System configuration TN-S✓ Yes
System configuration TT✗ No
System configuration other✓ Yes
Number of conductors (without earthing)2
Nominal discharge surge current (8/20)20kA
Nominal voltage AC280V
Max. discharge surge current (8/20)40kA
Nominal voltage DC0V
Max. continuous voltage AC280V
Max. continuous voltage DC0V
Voltage protection level1.4kV
Max. PV-voltage0V
Max. overcurrent protection device, parallel connection (fuse)0A
Max. conductor cross section solid (solid, stranded)25mm²
Max. overcurrent protection device, series connection (fuse)125A
Max. conductor cross section flexible (fine-strand)35mm²
Short-circuit breaking capacity (Isccr)50kA
Voltage protection level L-N0kV
Integrated short-circuit protection✗ No
Voltage protection level N-PE0kV
Integrated short-circuit protection selective to fuse gG0A
Integrated backup fuse✗ No
Leakage-current free✗ No
Mounting methodDIN rail (top hat rail) 35 mm
Construction size2 modular spacing
With remote signalling contact✗ No
Signalling at the deviceOptic
Category type 2✓ Yes
Degree of protection (IP)IP20
