SKU: 1577747
46,77EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number158306

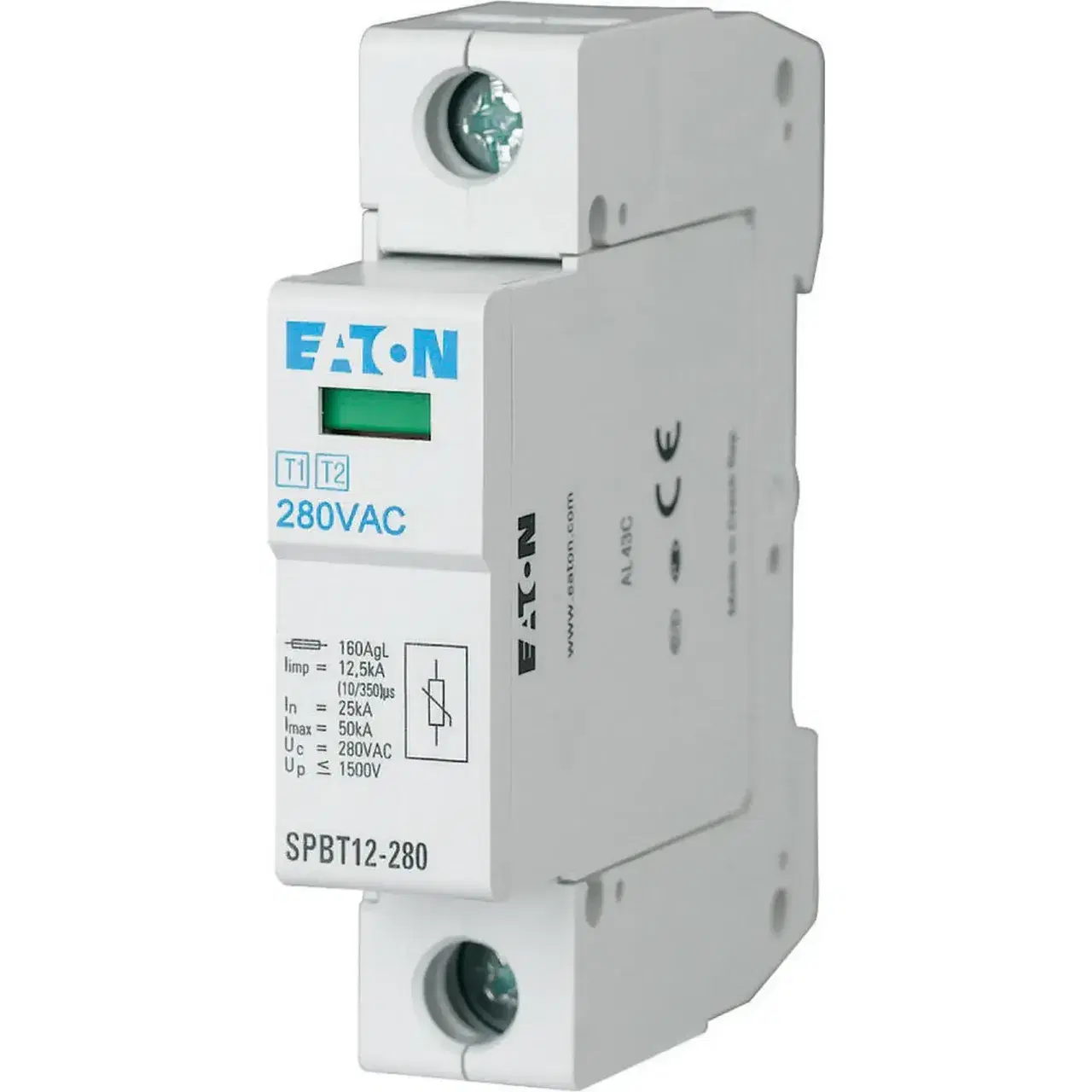

Product typeSPBT12-280/1
EAN code4015081548842
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
System configuration DC✗ No
System configuration IT✗ No
System configuration TN✓ Yes
System configuration TN-C✗ No
System configuration TN-C-S✗ No
System configuration TN-S✓ Yes
System configuration TT✗ No
System configuration other✓ Yes
Number of poles1
Lightning impulse current (10/350 µs)12.5kA
Max. continuous voltage AC280V
Max. continuous voltage DC0V
Nominal voltage AC280V
Nominal voltage DC0V
Max. PV-voltage0V
Voltage protection level1.5kV
Voltage protection level L-N0kV
Voltage protection level L-PE1.5kV
Voltage protection level N-PE0kV
Voltage protection level (DC+ - DC-)0kV
Voltage protection level (DC+/DC- - PE)0kV
Follow current extinguishing capability0kA
Specific energy (W/R)39.1kJ/Ohm
Max. conductor cross section solid (solid, stranded)25mm²
Max. overcurrent protection device, parallel connection (fuse)0A
Max. conductor cross section flexible (fine-strand)35mm²
Max. overcurrent protection device, series connection (fuse)160A
Mounting methodDIN rail (top hat rail) 35 mm
Construction size1 modular spacing
Remote signalling✗ No
Signalling at the deviceOptic
Integrated backup fuse✗ No
Test classType 1 + 2
Energy-coordinated protection effect with regard to the terminal equipment✗ No
Degree of protection (IP)IP20
Voltage switching spark gap technology✗ No
Overcurrent protected voltage tapping✗ No
