Nema prevoda za ovaj jezik
SKU: 1064587
1002,92EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number111967

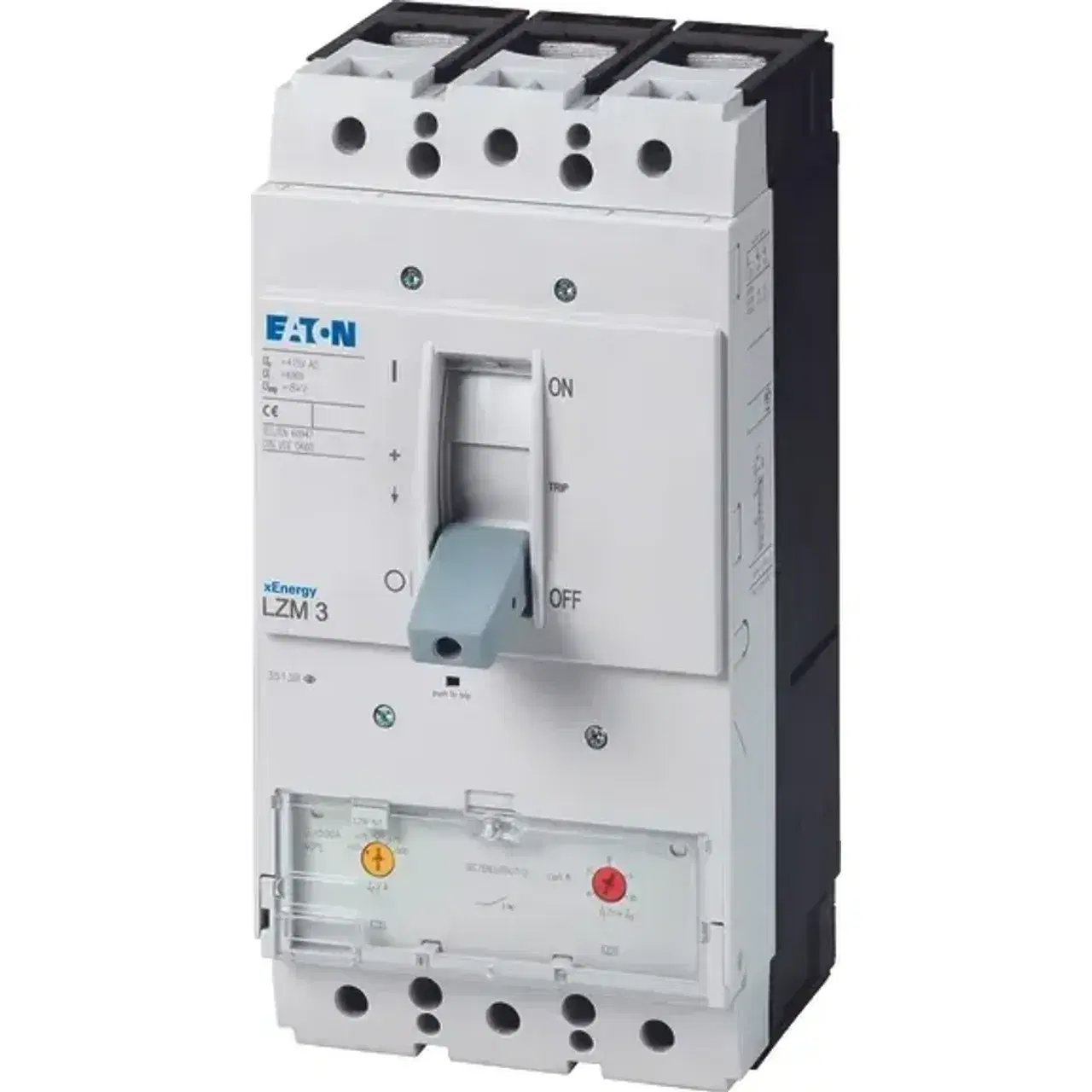

Product typeLZMN3-A400-I
EAN code4015081115150
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Rated permanent current Iu400A
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Overload release current setting320 - 400A
Adjustment range short-term delayed short-circuit release0 - 0A
Adjustment range undelayed short-circuit release2400 - 4000A
Type of electrical connection of main circuitScrew connection
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protection✗ No
Suitable for DIN rail (top hat rail) mounting✗ No
DIN rail (top hat rail) mounting optional✗ No
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicator✗ No
With integrated under voltage release✗ No
Position of connection for main current circuitFront side
Number of poles3
Type of control elementRocker lever
Complete device with protection unit✓ Yes
Motor drive optional✓ Yes
Motor drive integrated✗ No
Degree of protection (IP)IP20
