SKU: 1579215
138,01EUR
Price without VAT
Stock

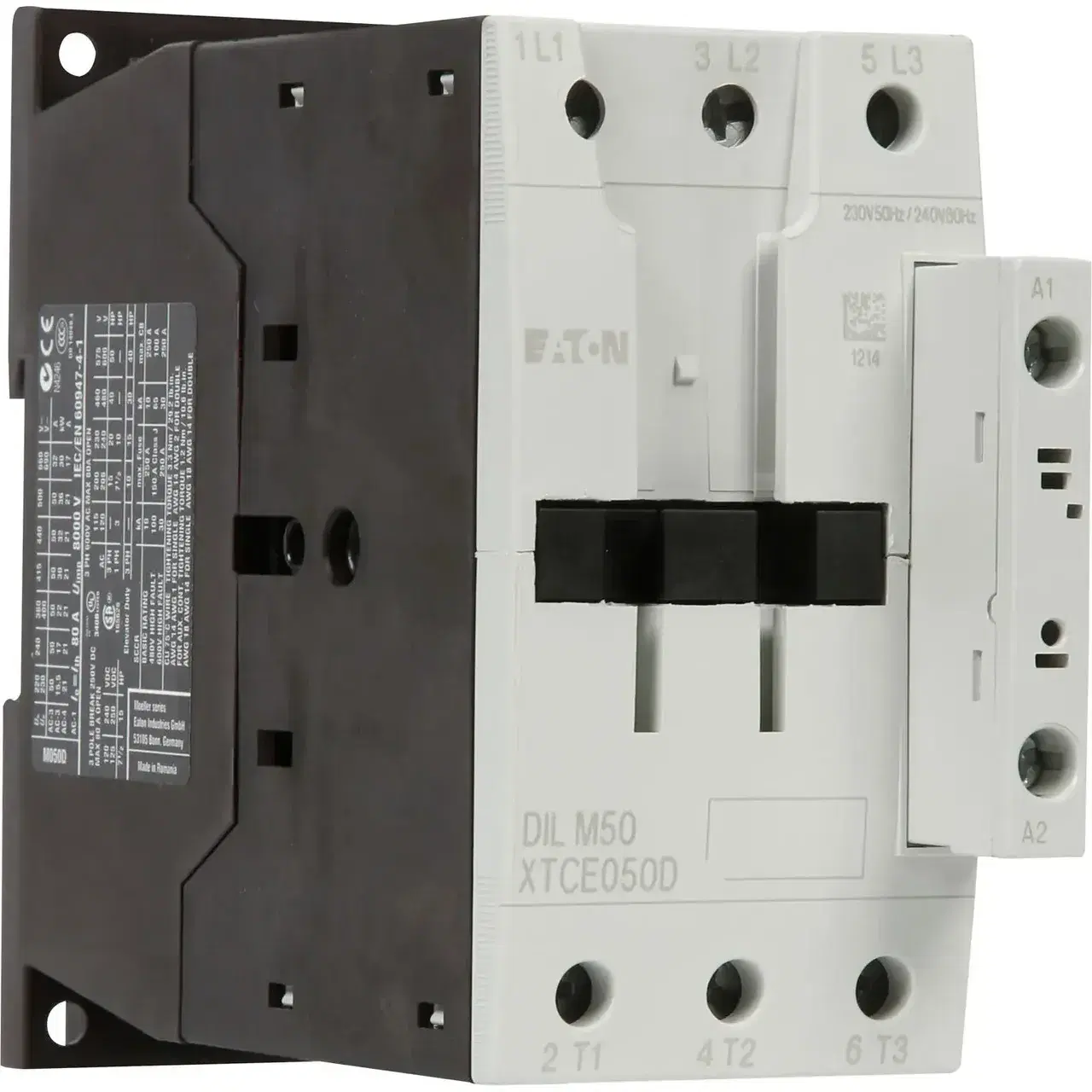

ManufacturerEaton
Catalog number277830
Product typeDILM50(230V50HZ,240V60HZ)
EAN code4015082778309
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Rated control supply voltage Us at AC 50HZ230 - 230V
Rated control supply voltage Us at AC 60HZ240 - 240V
Rated control supply voltage Us at DC0 - 0V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Operating voltage at AC 50 Hz230 - 690V
Rated operation current Ie at AC-4, 400 V50A
Operating voltage at AC 60 Hz230 - 690V
Rated operation power at AC-4, 400 V22kW
Rated operation power NEMA22kW
Rated operation current Ie at AC-1, 400 V80A
Modular version✗ No
Rated operation current Ie at AC-3, 400 V50A
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V22kW
Number of auxiliary contacts as normally closed contact0
Width55mm
Height115mm
Depth132.1mm
