SKU: 1747481
74,57EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number263561

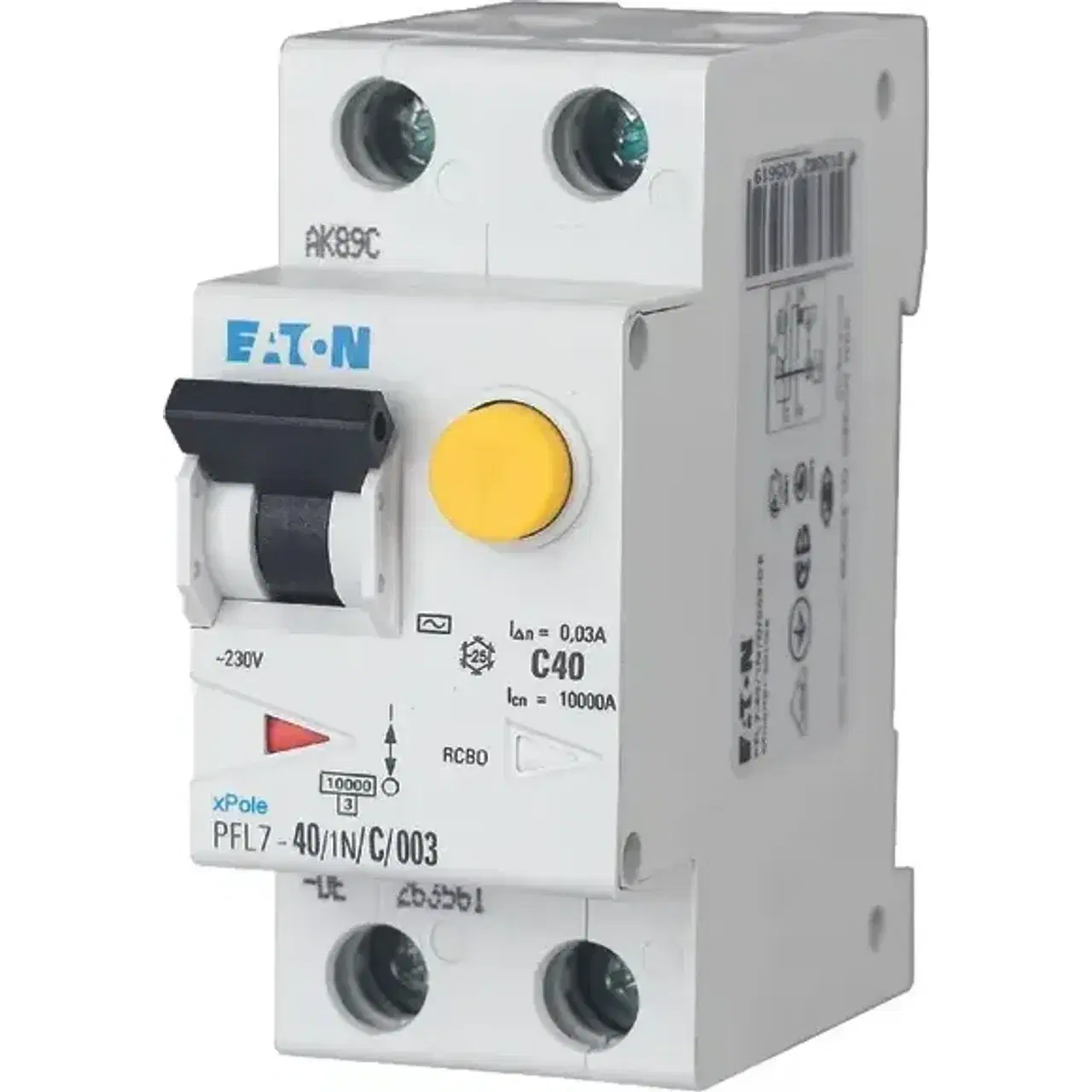

Product typePFL7-40/1N/C/003-DE
EAN code4015082635619
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Number of poles (total)2
Number of protected poles1
Rated voltage230V
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Rated current40A
Rated fault current0.03A
Mounting methodDIN rail
Current limiting class3
Leakage current typeAC
Rated short-circuit breaking capacity according to IEC 60947-20kA
Rated short-circuit breaking capacity according to EN 6100910kA
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Disconnection characteristicUndelayed
Surge current capacity0.25kA
Voltage typeAC
Frequency50 Hz
With interlocking device✗ No
Release characteristicC
Over voltage category3
Concurrently switching neutral conductor✓ Yes
Pollution degree2
Ambient temperature during operating-25 - 40°C
Built-in depth69.5mm
Suitable for flush-mounted installation✗ No
Width in number of modular spacings2
Anti-nuisance tripping version✗ No
Connectable conductor cross section solid-core1 - 25mm²
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired1 - 25mm²
