SKU: 1872943
46,43EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number194694

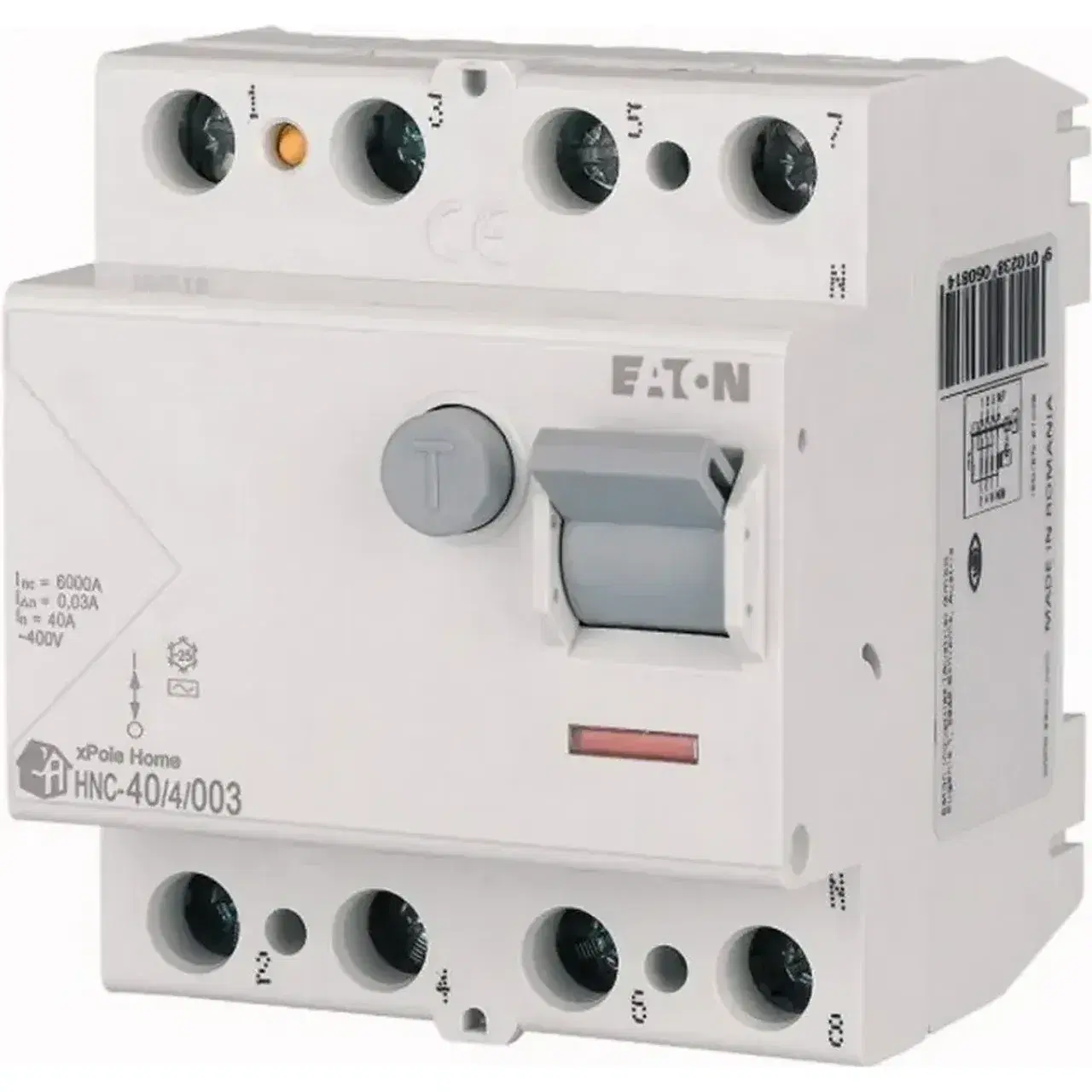

Product typeHNC-40/4/003
EAN code9010238060845
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Number of poles4
Rated voltage400V
Rated current40A
Rated fault current0.03A
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Mounting methodDIN rail
Leakage current typeAC
Selective protection✗ No
Short-circuit breaking capacity (Icw)6kA
Short-time delayed tripping✗ No
Surge current capacity0.25kA
Additional equipment possible✓ Yes
Voltage typeAC
With interlocking device✓ Yes
Frequency50 Hz
Built-in depth45mm
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 40°C
Width in number of modular spacings4
Pollution degree2
Connectable conductor cross section multi-wired1.5 - 16mm²
Connectable conductor cross section solid-core1.5 - 35mm²
