Nema prevoda za ovaj jezik
SKU: 1089125
24,64EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number120853

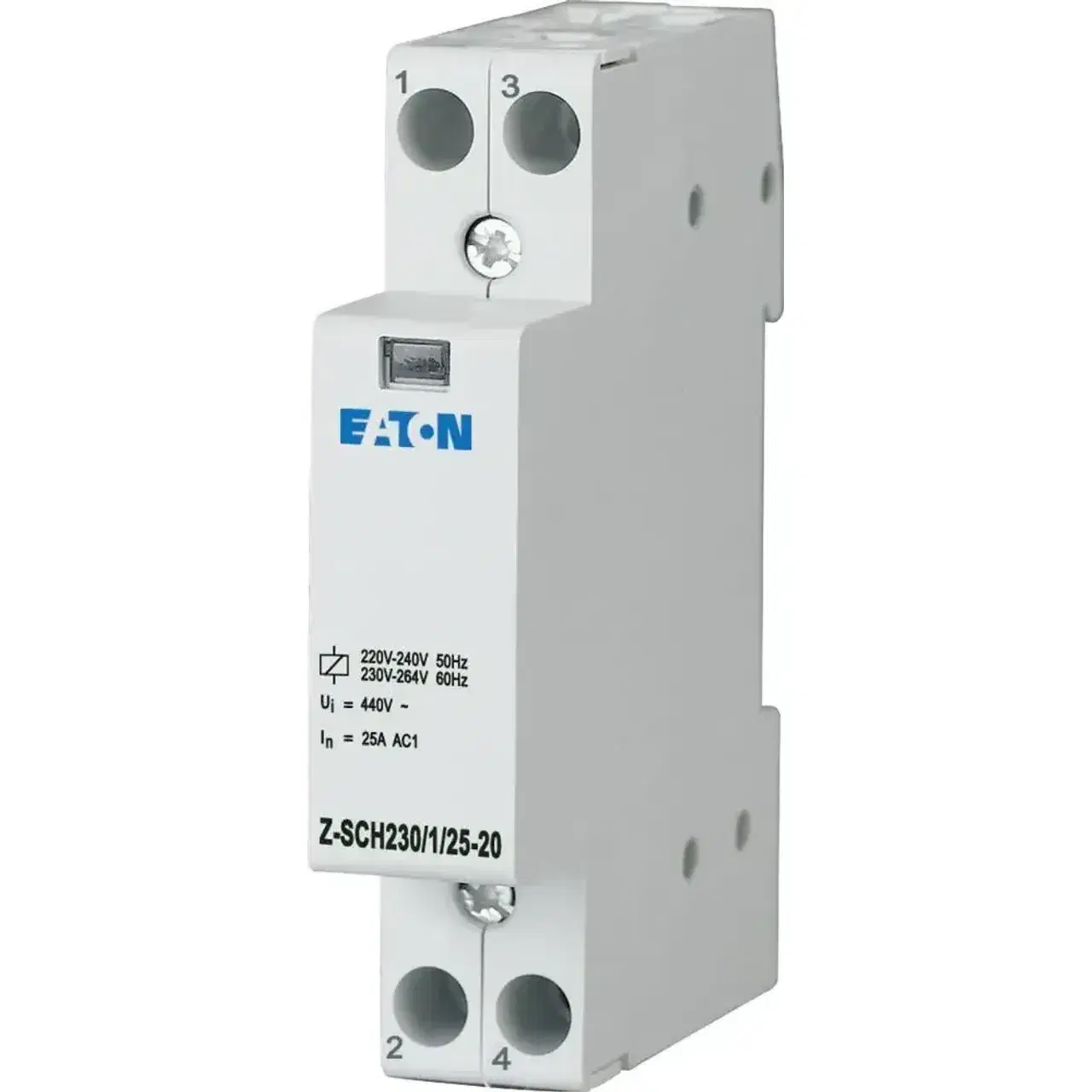

Product typeZ-SCH230/1/25-20
EAN code9008790163418
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Rated operating voltage440 - 440V
Rated operation current25A
Utilization category according to EN IEC 60947-4-1AC-1
Rated excitation voltage195.5 - 253V
Voltage type (operating voltage)AC
Voltage type (excitation voltage)AC
Number of contacts as normally open contact2
Number of contacts as normally closed contact0
Max. incandescent lamp load3000W
Max. load fluorescent lamp1160VA
Max. load fluorescent lamp (Duo circuit)2552VA
Max. load fluorescent lamp (parallel compensated)1044VA
Slider for hand switch✗ No
Width in number of modular spacings1
Built-in depth60mm
Additional equipment possible✓ Yes
With day/night function✗ No
Hum-free✗ No
Degree of protection (IP)IP20
