SKU: 1025157
65,49EUR
Price without VAT
Stock

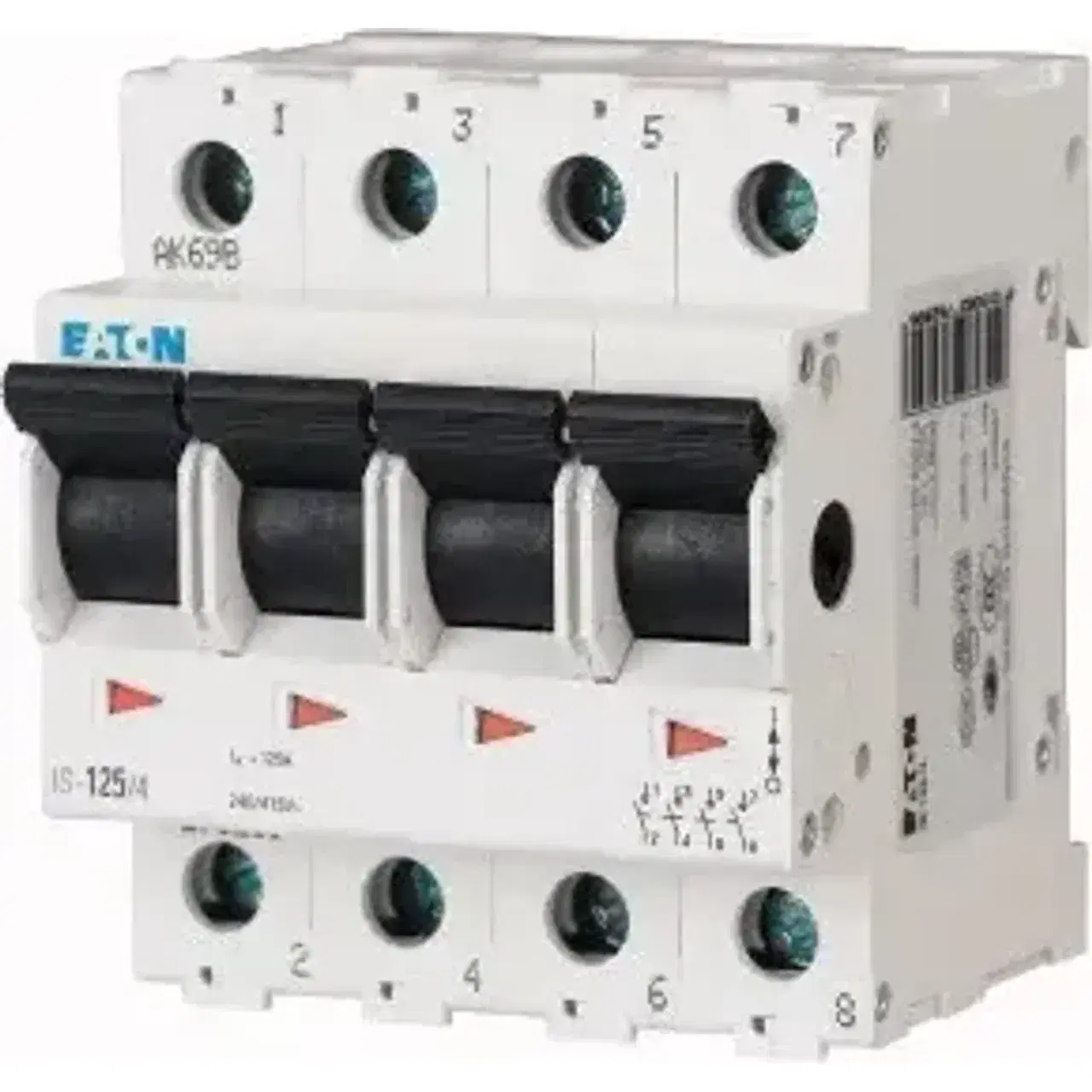

ManufacturerEaton
Catalog number276289
Product typeIS-125/4
EAN code4015082762896
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Switching functionOff switch
Number of contacts as normally open contact4
Number of contacts as normally closed contact0
Number of contacts as change-over contact0
Number of poles4
Rated current125A
Rated voltage240V
Min. rated voltage240V
Rated switching capacity10kA
Short-circuit breaking capacity (Icw)2kA
Voltage typeAC
With signal lamp✗ No
Colour calotteOther
Lamp typeOther
Lamp socketOther
Max. lamp power0W
Width in number of modular spacings4
Built-in depth69.5mm
Degree of protection (IP)IP40
Imprint/indicationSymbol "arrows"
Forced segregation (according to DIN VDE 0113)✗ No
