SKU: 1014959
36,33EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number010343

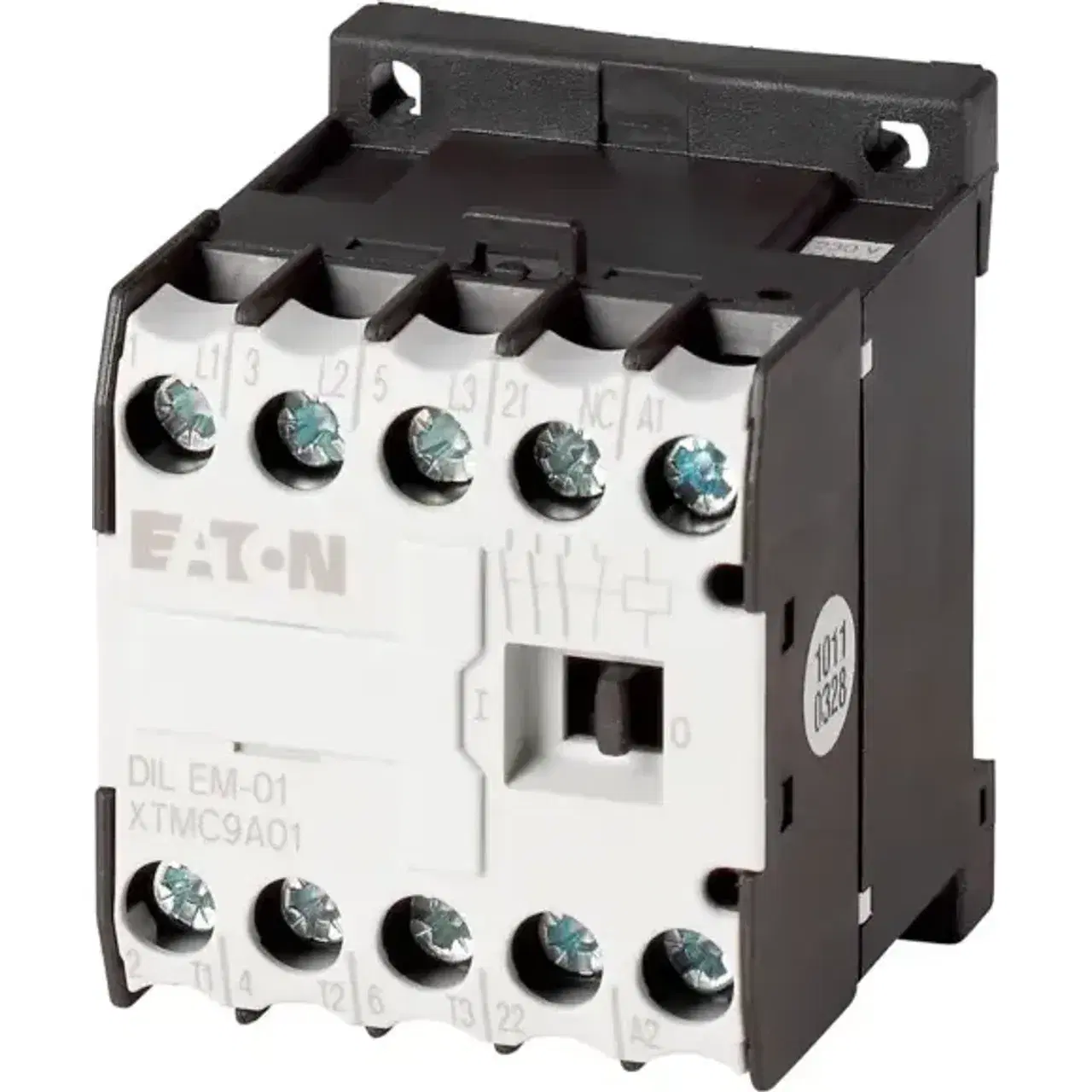

Product typeDILEM-01-G(24VDC)
EAN code4015080103431
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at DC24 - 24V
Voltage type for actuatingDC
Rated operation current Ie at AC-1, 400 V22A
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Operating voltage at AC 50 Hz24 - 690V
Rated operation current Ie at AC-4, 400 V6.6A
Operating voltage at AC 60 Hz24 - 690V
Rated operation power at AC-4, 400 V3kW
Rated operation power NEMA3.7kW
Modular version✗ No
Rated operation current Ie at AC-3, 400 V9A
Rated operation power at AC-3, 400 V4kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact1
Width45mm
Height58mm
Depth54mm
