SKU: 1015793
158,38EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number277894

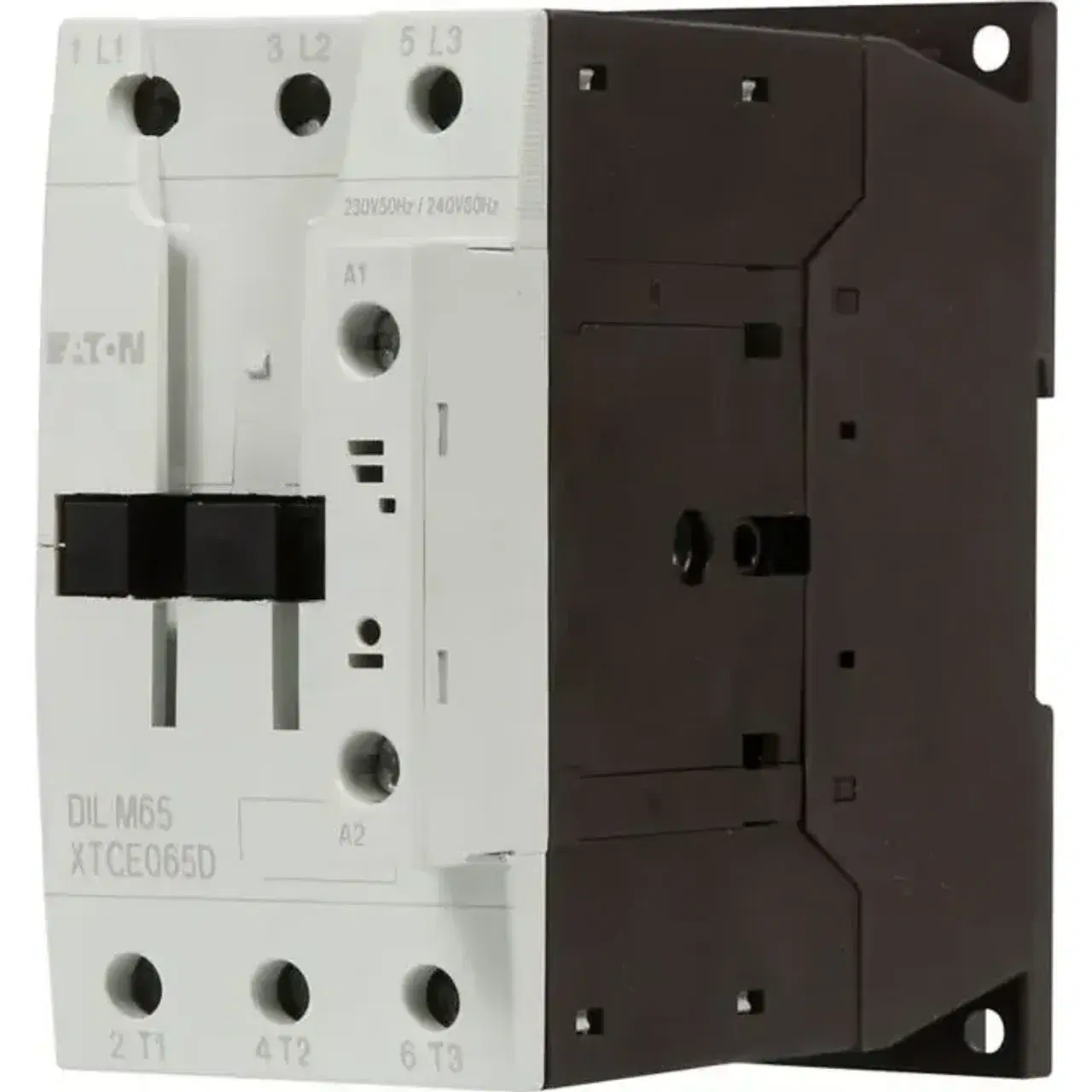

Product typeDILM65(230V50HZ,240V60HZ)
EAN code4015082778941
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Rated control supply voltage Us at AC 50HZ230 - 230V
Rated control supply voltage Us at AC 60HZ240 - 240V
Rated control supply voltage Us at DC0 - 0V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Operating voltage at AC 50 Hz230 - 690V
Rated operation current Ie at AC-4, 400 V65A
Operating voltage at AC 60 Hz230 - 690V
Rated operation power at AC-4, 400 V30kW
Rated operation power NEMA30kW
Rated operation current Ie at AC-1, 400 V98A
Modular version✗ No
Rated operation current Ie at AC-3, 400 V65A
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V30kW
Number of auxiliary contacts as normally closed contact0
Width55mm
Height115mm
Depth132.1mm
