Nema prevoda za ovaj jezik
SKU: 1015903
62,60EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number277012

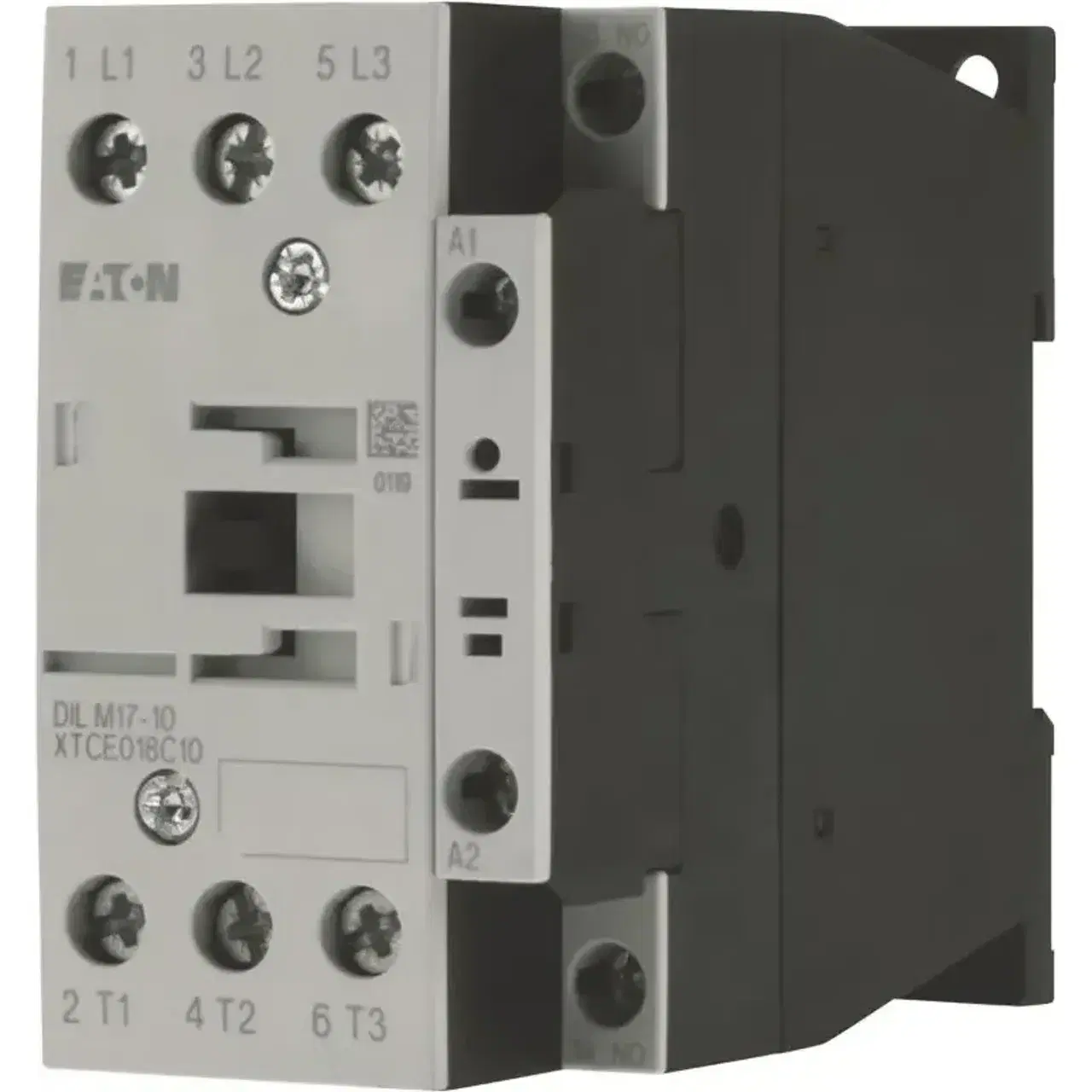

Product typeDILM17-10(230V50/60HZ)
EAN code4015082770129
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Rated control supply voltage Us at AC 50HZ230 - 230V
Rated control supply voltage Us at AC 60HZ230 - 230V
Rated control supply voltage Us at DC0 - 0V
Voltage type for actuatingAC
Rated operation current Ie at AC-1, 400 V40A
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Operating voltage at AC 50 Hz24 - 690V
Rated operation current Ie at AC-4, 400 V10A
Operating voltage at AC 60 Hz24 - 690V
Rated operation power at AC-4, 400 V4.5kW
Rated operation power NEMA7.4kW
Modular version✗ No
Rated operation current Ie at AC-3, 400 V18A
Rated operation power at AC-3, 400 V7.5kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact0
Width45mm
Height85mm
Depth97mm
