Nema prevoda za ovaj jezik
SKU: 1050149
385,45EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number239548

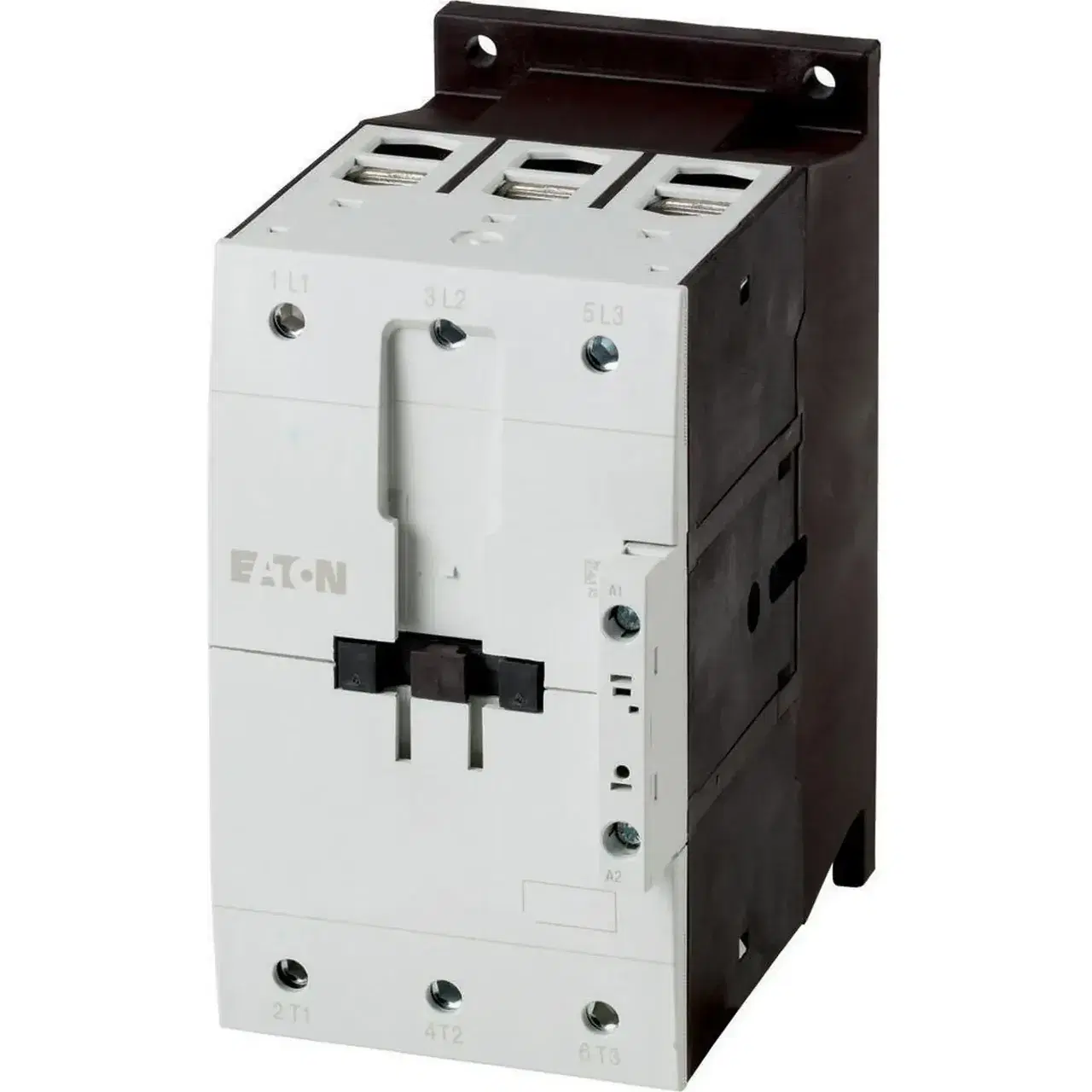

Product typeDILM115(RAC240)
EAN code4015082395483
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Rated control supply voltage Us at AC 50HZ190 - 240V
Rated control supply voltage Us at AC 60HZ190 - 240V
Rated control supply voltage Us at DC0 - 0V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-4, 400 V55A
Operating voltage at AC 50 Hz230 - 690V
Operating voltage at AC 60 Hz230 - 690V
Rated operation power at AC-4, 400 V28kW
Rated operation power NEMA74kW
Rated operation current Ie at AC-1, 400 V160A
Modular version✗ No
Rated operation current Ie at AC-3, 400 V115A
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V55kW
Number of auxiliary contacts as normally closed contact0
Width90mm
Height170mm
Depth160mm
