Nema prevoda za ovaj jezik
SKU: 1044794
110,02EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number046989

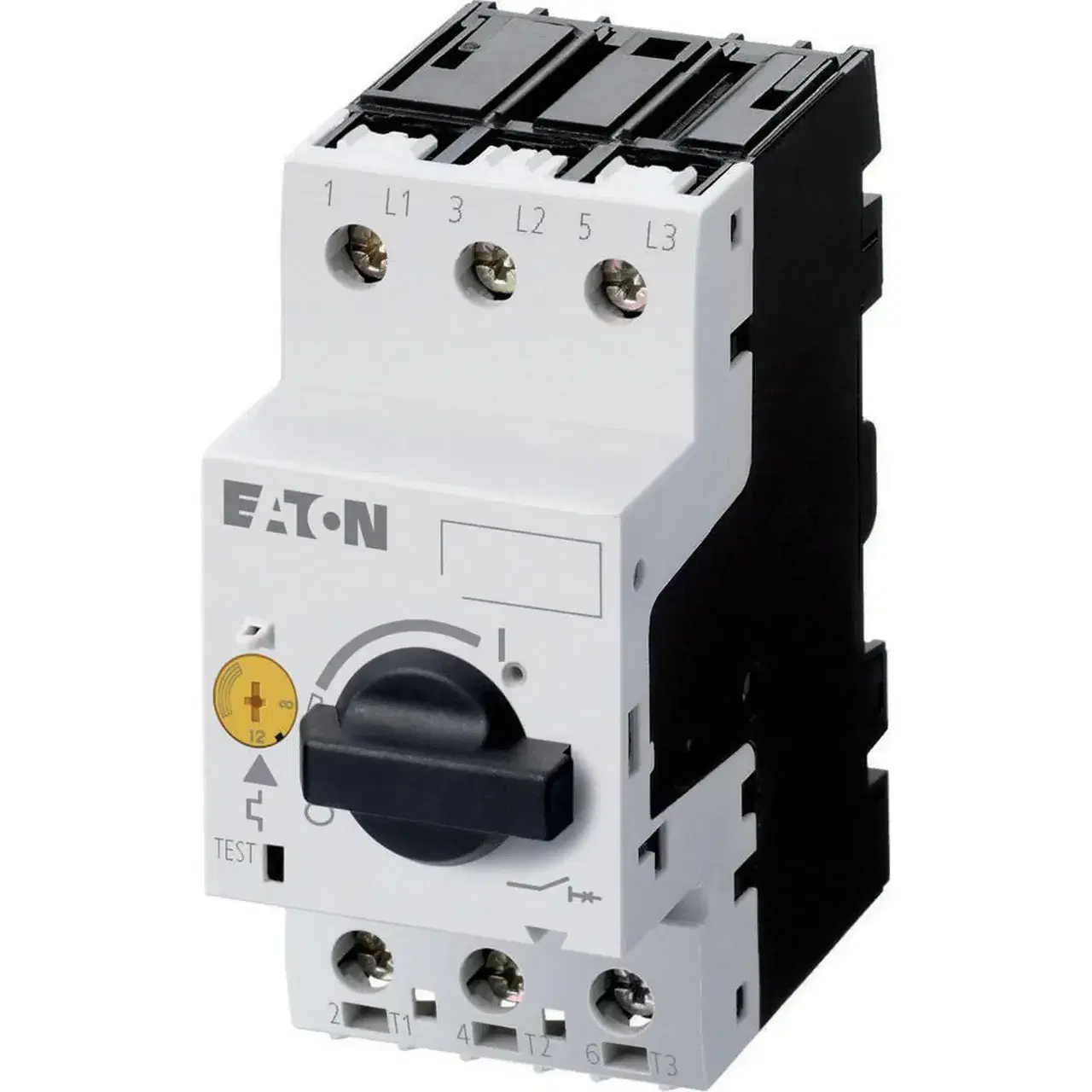

Product typePKZM0-25
EAN code4015080469896
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Overload release current setting20 - 25A
Adjustment range undelayed short-circuit release388 - 388A
With thermal protection✓ Yes
Phase failure sensitive✓ Yes
Switch off techniqueThermomagnetic
Rated operating voltage690 - 690V
Rated permanent current Iu25A
Rated operation power at AC-3, 230 V5.5kW
Rated operation power at AC-3, 400 V12.5kW
Power loss7.04W
Type of control elementTurn button
Type of electrical connection of main circuitScrew connection
Device constructionBuilt-in device fixed built-in technique
With integrated auxiliary switch✗ No
With integrated under voltage release✗ No
Rated short-circuit breaking capacity lcu at 400 V, AC50kA
Number of poles3
Height93mm
Degree of protection (IP)IP20
Width45mm
Depth76mm
