SKU: 1015472
86,50EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number088527

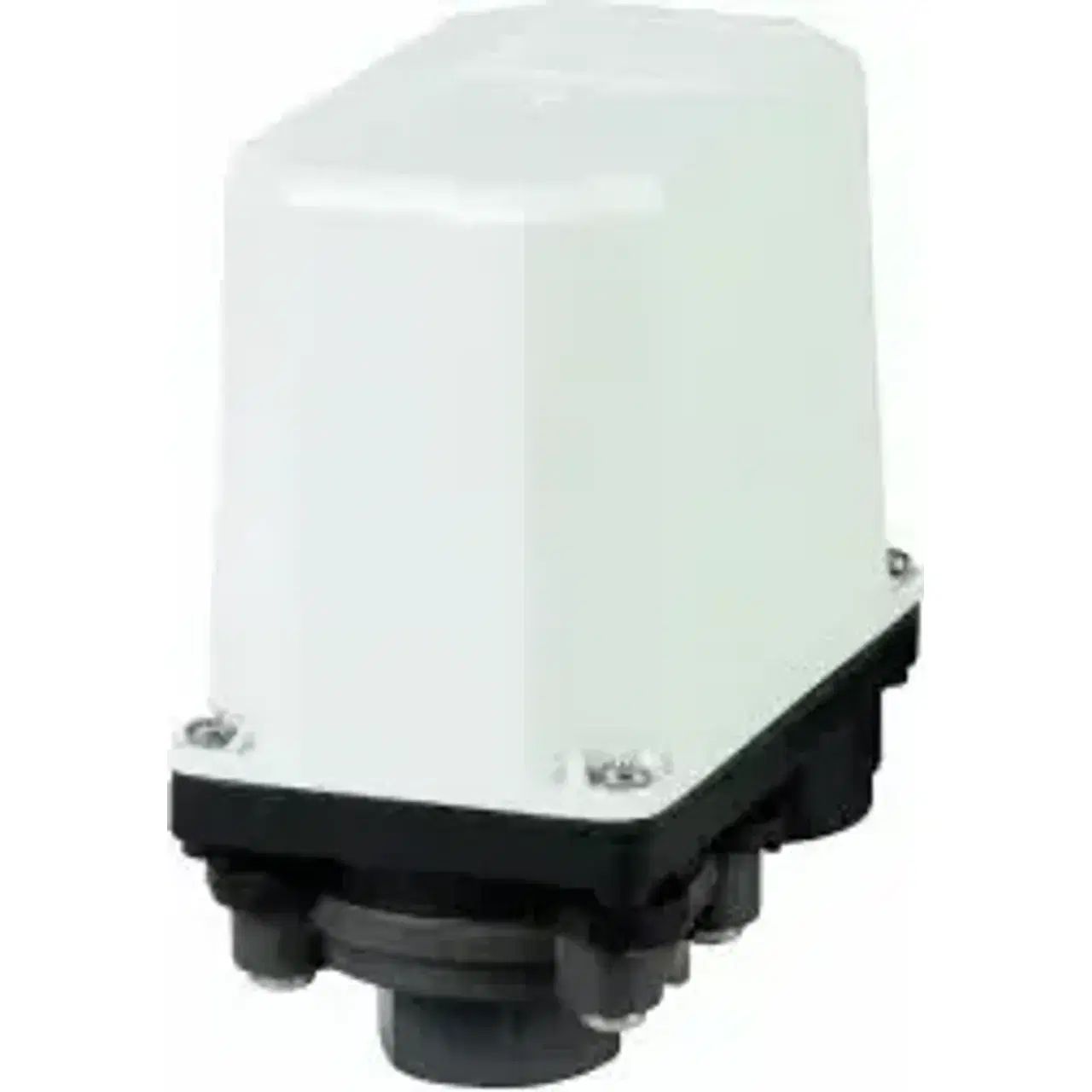

Product typeMCS11
EAN code4015080885276
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Suitable as guard✓ Yes
Suitable as 2-point controller✓ Yes
Suitable as limiter✗ No
Max. operating pressure15000hPa
Engaging pressure2 - 11bar
Initial setting0 - 0hPa
Switch off pressure2 - 11bar
End setting0 - 0hPa
Pressure-switching differential11bar
Max. test pressure11bar
Bursting pressure90bar
Medium temperature25 - 80°C
ConnectionInternal thread cylindrical BSPP-G (ISO 228-1)
Thread size1/2 inch
Rated voltage Ue at AC 50 Hz0 - 230V
Rated voltage Ue at AC 60 Hz0 - 230V
Rated voltage Ue at DC0 - 110V
Initial value measuring range pressure0Pa
End value measuring range pressure0Pa
Rated operation power at AC-3, 400 V0kW
Switching capacity at AC-3, 240 V0kA
Rated operation current Ie at AC-1, 400 V11A
Rated operation current Ie at AC-3, 400 V11A
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact1
Type of electric connectionScrew connection
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact0
Adjustable current range0 - 0A
With hand operation✗ No
With manual on/off switch✗ No
Electronic version✗ No
With display✗ No
Explosion-proof✗ No
Degree of protection (IP)IP65
Degree of protection (NEMA)Other
Height111mm
Width60mm
Diameter0mm
Depth96mm
