SKU: 1863038
162,31EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number197218

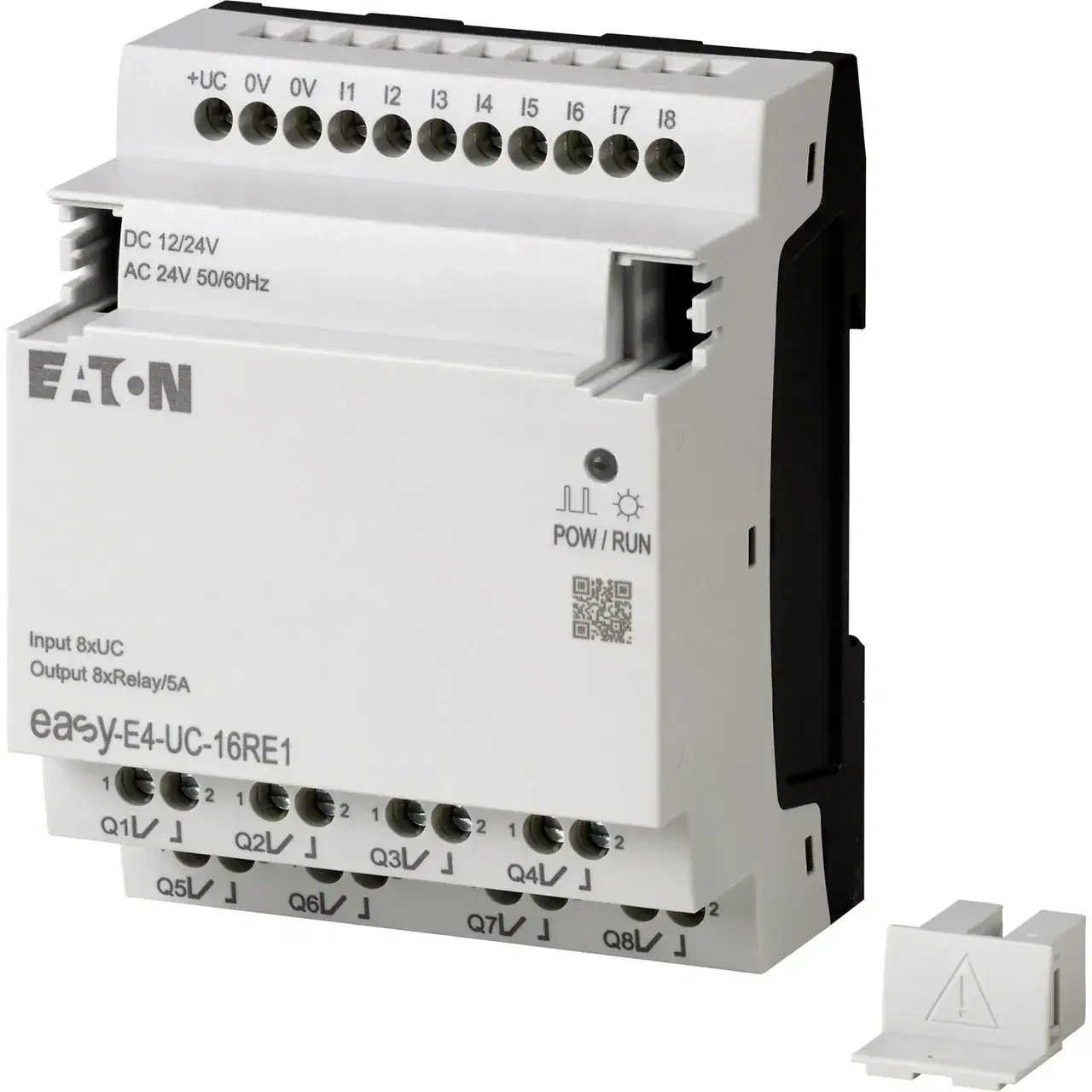

Product typeEASY-E4-UC-16RE1
EAN code4015080892793
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Supply voltage AC 50 Hz85 - 264V
Supply voltage AC 60 Hz85 - 264V
Supply voltage DC10.2 - 28.8V
Voltage type of supply voltageAC/DC
Switching current5A
Power consumption3W
Number of analogue inputs0
Number of analogue outputs0
Number of digital inputs8
Number of digital outputs8
Number of HW-interfaces industrial Ethernet0
With relay output✓ Yes
Number of interfaces PROFINET0
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4850
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Number of HW-interfaces parallel0
Number of HW-interfaces Wireless0
Number of HW-interfaces other0
With optical interface✗ No
Supporting protocol for TCP/IP✓ Yes
Supporting protocol for PROFIBUS✗ No
Supporting protocol for EtherCAT✗ No
Supporting protocol for CAN✗ No
Supporting protocol for INTERBUS✗ No
Supporting protocol for ASI✗ No
Supporting protocol for KNX✗ No
Supporting protocol for Modbus✓ Yes
Supporting protocol for Data-Highway✗ No
Supporting protocol for DeviceNet✗ No
Supporting protocol for SUCONET✗ No
Supporting protocol for LON✗ No
Supporting protocol for PROFINET IO✗ No
Supporting protocol for PROFINET CBA✗ No
Supporting protocol for SERCOS✗ No
Supporting protocol for Foundation Fieldbus✗ No
Supporting protocol for EtherNet/IP✗ No
Supporting protocol for AS-Interface Safety at Work✗ No
Supporting protocol for DeviceNet Safety✗ No
Supporting protocol for INTERBUS-Safety✗ No
Supporting protocol for PROFIsafe✗ No
Supporting protocol for SafetyBUS p✗ No
Supporting protocol for other bus systems✗ No
Radio standard Bluetooth✗ No
Radio standard Wi-Fi 802.11✗ No
Radio standard GPRS✗ No
Radio standard GSM✗ No
Radio standard UMTS✗ No
IO link master✗ No
Redundancy✗ No
With display✗ No
Expandable✓ Yes
Degree of protection (IP)IP20
Basic device✗ No
With time switch clock✗ No
Expansion device✓ Yes
Front built-in possible✓ Yes
Rail mounting possible✓ Yes
Rack-assembly possible✗ No
Wall mounting/direct mounting✓ Yes
Suitable for safety functions✗ No
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
Appendant operation agent (Ex ia)✗ No
Appendant operation agent (Ex ib)✗ No
Explosion safety category for gasNone
Explosion safety category for dustNone
Width72mm
Height90mm
Certified for UL hazardous location class I✓ Yes
Depth58mm
Certified for UL hazardous location class II✗ No
Certified for UL hazardous location class III✗ No
Certified for UL hazardous location division 1✗ No
Certified for UL hazardous location division 2✓ Yes
Certified for UL hazardous location group A (acetylene)✓ Yes
Certified for UL hazardous location group B (hydrogen)✗ No
Certified for UL hazardous location group C (ethylene)✓ Yes
Certified for UL hazardous location group D (propane)✓ Yes
Certified for UL hazardous location group E (metal dusts)✗ No
Certified for UL hazardous location group F (carbonaceous dusts)✗ No
Certified for UL hazardous location group G (non-conductive dusts)✗ No
