Nema prevoda za ovaj jezik
SKU: 1014699
102,15EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number067201

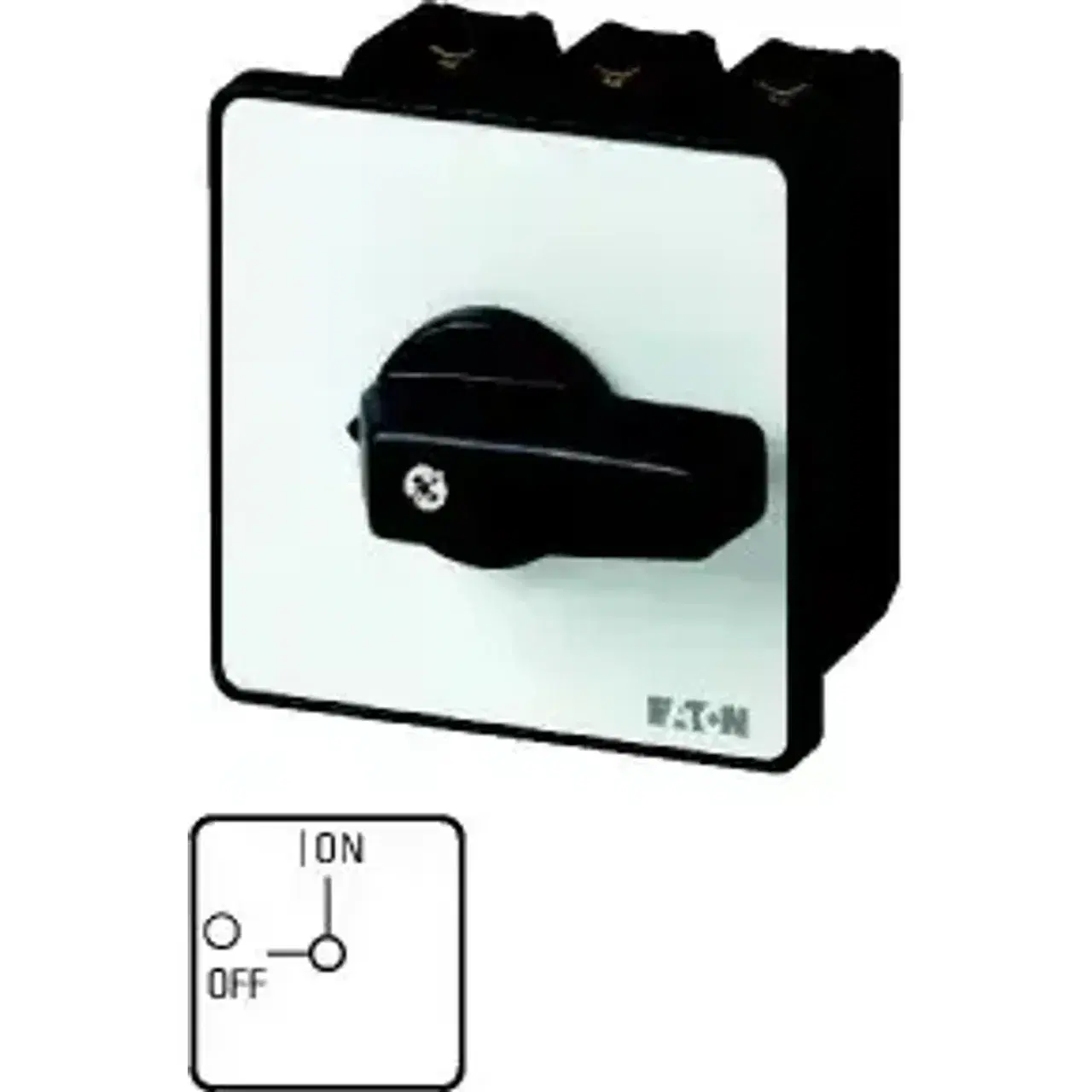

Product typeP3-100/E
EAN code4015080672012
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Version as main switch✓ Yes
Version as maintenance-/service switch✓ Yes
Version as safety switch✗ No
Version as emergency stop installation✗ No
Version as reversing switch✗ No
Number of switches1
Max. rated operation voltage Ue AC690V
Rated operating voltage690 - 690V
Rated permanent current Iu100A
Rated permanent current at AC-23, 400 V100A
Rated permanent current at AC-21, 400 V100A
Rated operation power at AC-3, 400 V37kW
Rated short-time withstand current lcw2kA
Rated operation power at AC-23, 400 V55kW
Switching power at 400 V55kW
Conditioned rated short-circuit current Iq80kA
Number of poles3
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Motor drive optional✗ No
Motor drive integrated✗ No
Voltage release optional✗ No
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mounting✗ No
Suitable for front mounting 4-hole✓ Yes
Suitable for front mounting centre✗ No
Suitable for distribution board installation✗ No
Suitable for intermediate mounting✗ No
Colour control elementBlack
Type of control elementShort thumb-grip
Interlockable✗ No
With pre-assembled cabling✗ No
Degree of protection (NEMA)12
Type of electrical connection of main circuitScrew connection
Width90mm
Degree of protection (IP), front sideIP65
Height90mm
Depth100mm
