SKU: 1014721
85,13EUR
Price without VAT
Stock
ManufacturerEaton
Catalog number031884

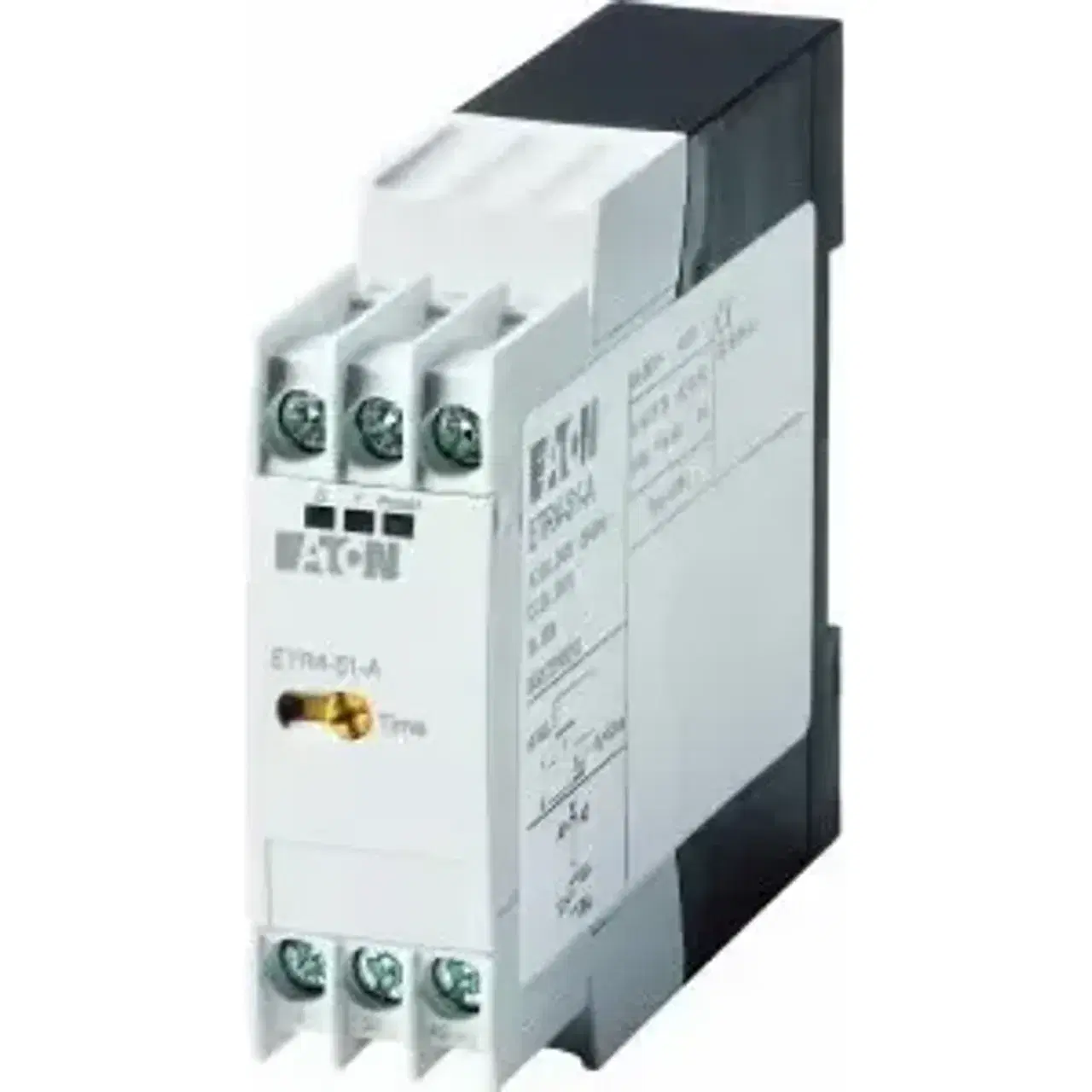

Product typeETR4-51-A
EAN code4015080318842
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
Type of electric connectionScrew connection
Type of excitationAnalogue with single function
Complete with socket✗ No
Function floating contact on energization✗ No
Suitable for front mounting✗ No
Suitable for DIN rail (top hat rail) mounting✓ Yes
Function floating contact on de-energization✗ No
Function pulse shaping✗ No
Function flashing, starting with pause, fixed time✗ No
Function delay-on energization✗ No
Function flashing, starting with pulse, fixed time✗ No
Function delay on de-energization✗ No
Clock function, starting with pause, variable✗ No
Clock function, starting with pulse, variable✗ No
Function star-delta✓ Yes
Remote operation possible✗ No
Suitable as remote control✗ No
Pluggable on auxiliary contact block✗ No
Rated control supply voltage Us at AC 50HZ24 - 240V
Rated control supply voltage Us at AC 60HZ24 - 240V
Rated control supply voltage Us at DC24 - 240V
Nominal current3A
Time range3 - 60s
Number of outputs, undelayed, normally closed contact0
Number of outputs, undelayed, normally open contact1
Number of outputs, undelayed, change-over contact0
Voltage type for actuatingAC/DC
Number of outputs, delayed, normally closed contact0
Number of outputs, delayed, change-over contact0
Outputs, reversible delayed/undelayed✗ No
With semiconductor output✗ No
Number of outputs, delayed, normally open contact2
Height83mm
Depth103mm
Operating voltage at AC 50 Hz24 - 240V
Operating voltage at AC 60 Hz24 - 240V
Operating voltage at DC24 - 240V
Voltage type (operating voltage)AC/DC
Degree of protection (IP)IP20
Width22.5mm
