Name: Proizvod
Brand: Ledvance
SKU: 1783742
Price: 11.95 EUR
Availability: OutOfStock

SKU: 1783742

11,95EUR

Price without VAT

Stock

ManufacturerLedvance

Catalog number4058075078994

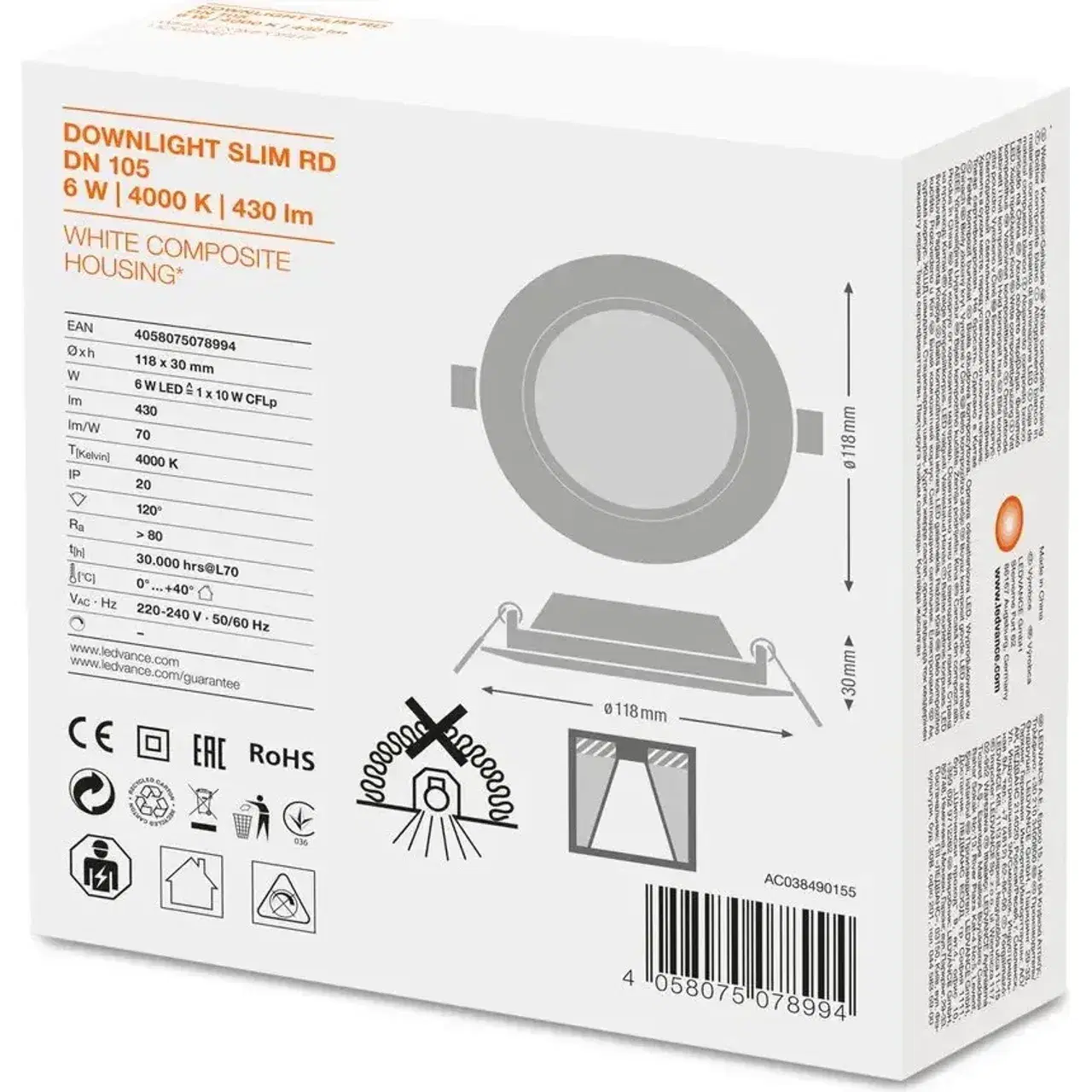

Product typeDL SLIM DN 105 6 W 4000 K WT

EAN code4058075078994

Unit of measureKOM

Quantity:

Free shipping

For orders over 100 EUR

Delivery: 2-4 business days

Estimated time for your location

Secure shopping

SSL protection and secure payment

14-day return guarantee

Easy return at no extra cost

Suitable for surface mounting✗ No

Suitable for built-in mounting✓ Yes

Suitable for wall mounting✗ No

Suitable for suspended mounting✗ No

Suitable for ceiling mounting✓ Yes

Suitable for traverse mounting✗ No

Suitable for pedestal/floor mounting✗ No

Suitable for light-track mounting✗ No

Suitable for clamp-mounting✗ No

Suitable for low voltage cable system✗ No

AdjustabilityNot adjustable

With movement sensor✗ No

With light sensor✗ No

Suitable for number of lamps0

Lamp typeLED not exchangeable

Lamp holderNone

With light source✓ Yes

Surface protectionUntreated

Material housingPlastic

Surface brushed✗ No

Colour housingWhite

Material coverPlastic, opal

Nominal voltage220 - 240V

LED nominal current at constant current58 - 58mA

Voltage typeAC

Type of control gearLED operating device current-controlled

With control gear✓ Yes

Exchangeable control gear✓ Yes

Dimming depending on control gear✗ No

Dimming 0-10 V✗ No

Dimmable✗ No

Dimming 1-10 V✗ No

Dimming DALI-2✗ No

Dimming DALI✗ No

Dimming DMX✗ No

Dimming DSI✗ No

Dimming potentiometer (integrated)✗ No

Dimming GPRS✗ No

Dimming LineSwitch✗ No

Dimming manufacturer's proprietary system✗ No

Dimming mains voltage modulation✗ No

Dimming phase cut-off✗ No

Dimming phase cut-on✗ No

Dimming programmable✗ No

Dimming RF✗ No

Dimming Sine Wave Reduction✗ No

Dimming Touch and Dim✗ No

Dimming Zigbee✗ No

Dimming with push-button✗ No

No dim function✓ Yes

ReflectorNone

Light distributorDiffuser lens/optic/panel

Light sharingSymmetric

Beam angleExtreme wide beam >80°

Light outletDirect

Total harmonic distortion20

Rated life time L70/B50 at 25 °C30000h

Rated life time L80/B10 at 25 °C20000h

Constant light output (CLO)✗ No

Degree of protection (IP), rear sideIP20

Degree of protection (IP)IP20

Impact strengthIK03

Protection classII

Rated ambient temperature according to IEC62722-2-1-20 - 50°C

Max. system power6W

Colour temperature4000 - 4000K

Luminous flux430 - 430lm

Colour of lightWhite

Rated luminous flux according to IEC 62722-2-1430lm

Width118mm

Colour temperature adjustableNo

Power factor0.5

Colour rendering index CRI80-89

Length118mm

Built-in width105mm

Luminous flux adjustableNo

Beam angle adjustableNo

Built-in length105mm

Built-in height/depth50mm

Luminaire with limited surface temperature, sign "D“✗ No

Height/depth30mm

Built-in diameter105 - 105mm

Outer diameter118mm

Type of wiringEnding

Number of poles2

Max. number of luminaires per miniature circuit breaker B1672

Max. number of luminaires per miniature circuit breaker C1696

Emergency power supply integrated✗ No

Connection typePush-in clamp

Luminaire efficacy70lm/W

Photobiological safety according to EN 62471RG0

Suitable for workplace according to EN 12464-1✗ No

Covering of the luminaire with thermally insulating material possible✗ No

IFTTT support available✓ Yes

Colour consistency (McAdam ellipse)SDCM6

Compatible with Apple HomeKit✗ No
