SKU: 1773428
35,14EUR
Price without VAT
Stock
ManufacturerLegrand
Catalog number048946
Product typeLegrand 048946
EAN code3414970630360
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost

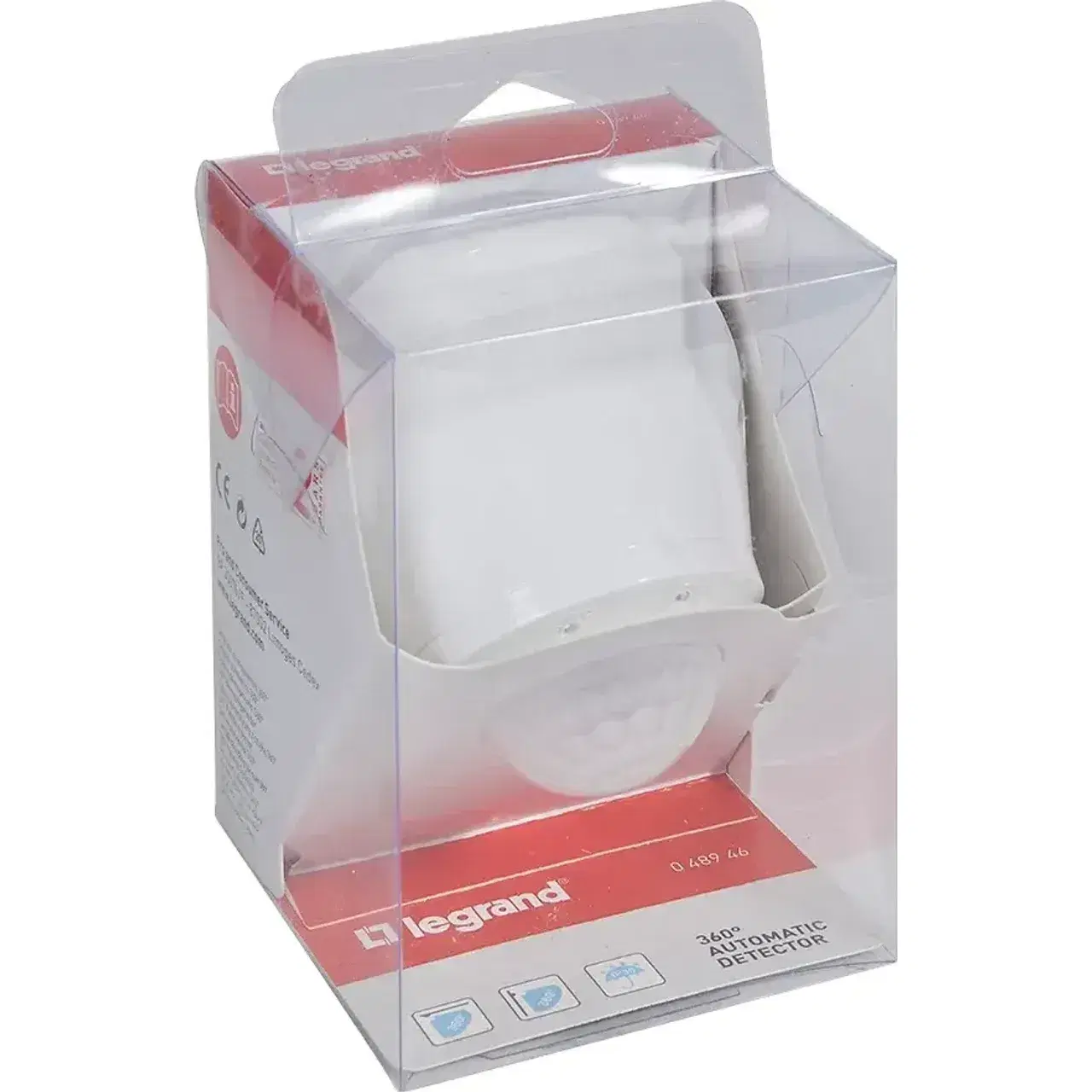

ModelMovement sensor
Sensor typePassive infrared
Movement sensor/presence detector technologyPassive infrared
With DALI interface✗ No
Constant light control✓ Yes
HVAC-control✗ No
Forced switch off✗ No
Animal zone✗ No
Creep-under protection✗ No
Networkable✗ No
Scan angle360°
Optimum mounting height2.5m
Staircase monitoring✓ Yes
Bridging switch✗ No
Max. transmission range sideways4m
Max. transmission range frontally8m
Diameter detection range on floor8m
Suitable for wireless transmission✗ No
Remote operation✗ No
With remote control✗ No
Response value sensitivity adjustable✓ Yes
Response value luminosity adjustable✓ Yes
With signal unit✗ No
Teach-function for response value luminosity✗ No
Mounting methodSurface mounted (plaster)
Dim function with dimmer basic element✗ No
Suitable for ceiling mounting✓ Yes
Suitable for wall mounting✓ Yes
MaterialPlastic
Material qualityThermoplastic
Surface protectionUntreated
Halogen free✓ Yes
Surface finishingGlossy
Anti-bacterial treatment✗ No
RAL-number (similar)9006
ColourWhite
Transparent✗ No
Degree of protection (IP)IP55
Impact strengthIK04
Frequency50 - 60Hz
Voltage typeAC
Nominal voltage240V
Min. switch-on time10s
Max. duty cycle10min
Detection angle horizontal360 - 360°
Pivoting range sensor, horizontal0 - 0°
Pivoting range sensor, vertical0 - 0°
Response value luminosity10 - 1275lx
Suitable for C-load✗ No
Max. switching power1000W
Temperature-5 - 35°C
Max. switching power LED250W
Number of switching zones1
Substation input✗ No
With alarm function✗ No
Width90.5mm
Height90.5mm
Depth72mm
Built-in depth0mm
