SKU: 1081582
333,63EUR
Price without VAT
Stock
ManufacturerObo Bettermann
Catalog number5096877

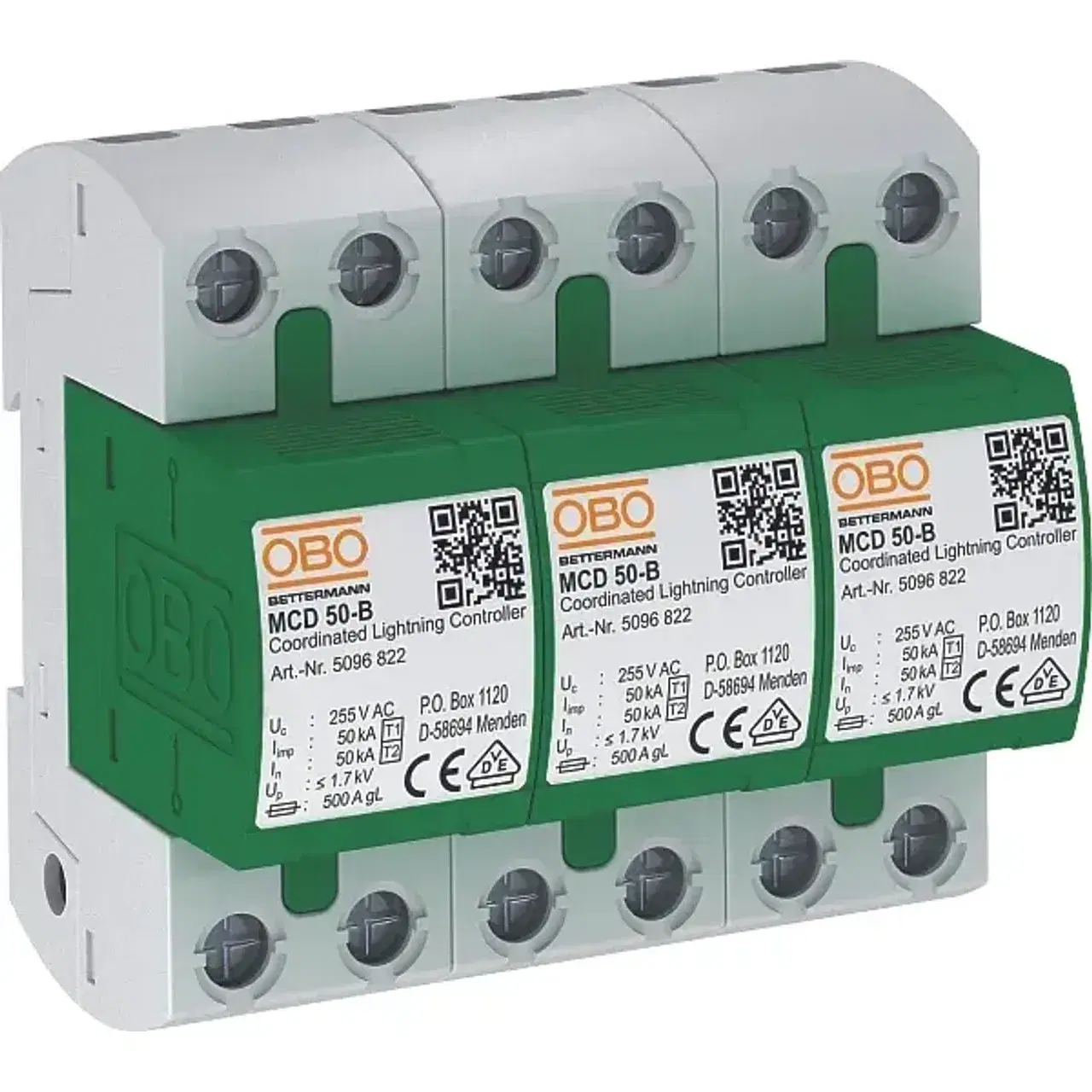

Product typeMCD 50-B 3
EAN code4012195154860
Unit of measureKOM
Quantity:
Free shipping
For orders over 100 EUR
Delivery: 2-4 business days
Estimated time for your location
Secure shopping
SSL protection and secure payment
14-day return guarantee
Easy return at no extra cost
System configuration DC✗ No
System configuration IT✗ No
System configuration TN✗ No
System configuration TN-C✓ Yes
System configuration TN-C-S✗ No
System configuration TN-S✗ No
System configuration TT✗ No
System configuration other✗ No
Number of conductors (without earthing)3
Lightning impulse current (10/350 µs)50kA
Nominal discharge surge current (8/20)50kA
Max. continuous voltage AC255V
Max. continuous voltage DC255V
Nominal voltage AC230V
Nominal voltage DC255V
Voltage protection level1.3kV
Voltage protection level L-N3kV
Voltage protection level N-PE3kV
Voltage protection level (DC+ - DC-)3kV
Voltage protection level (DC+/DC- - PE)3kV
Follow current extinguishing capability50kA
Mounting methodDIN rail (top hat rail) 35 mm
Construction size6 modular spacing
Max. conductor cross section solid (solid, stranded)50mm²
Exhausting✗ No
Signalling at the deviceNone
Category type 1✓ Yes
Degree of protection (IP)IP20
