SKU: 1756125

510,17EUR

Price without VAT

Stock

ManufacturerObo Bettermann
Catalog number5096987
Product typeMCF100-3+NPE+FS
EAN code4012196487332
Unit of measureKOM
Quantity:

Free shipping

For orders over 100 EUR

Delivery: 2-4 business days

Estimated time for your location

Secure shopping

SSL protection and secure payment

14-day return guarantee

Easy return at no extra cost

System configuration TNYes
System configuration TN-C-SYes
System configuration TN-SYes
System configuration TTYes
Number of conductors (without earthing)4
Lightning impulse current (10/350 µs)100kA
Nominal discharge surge current (8/20)35kA
Max. continuous voltage AC255V
Nominal voltage AC230V
Voltage protection level1.5kV
Voltage protection level L-N1.5kV
Follow current extinguishing capability50kA
Mounting methodDIN rail (top hat rail) 35 mm

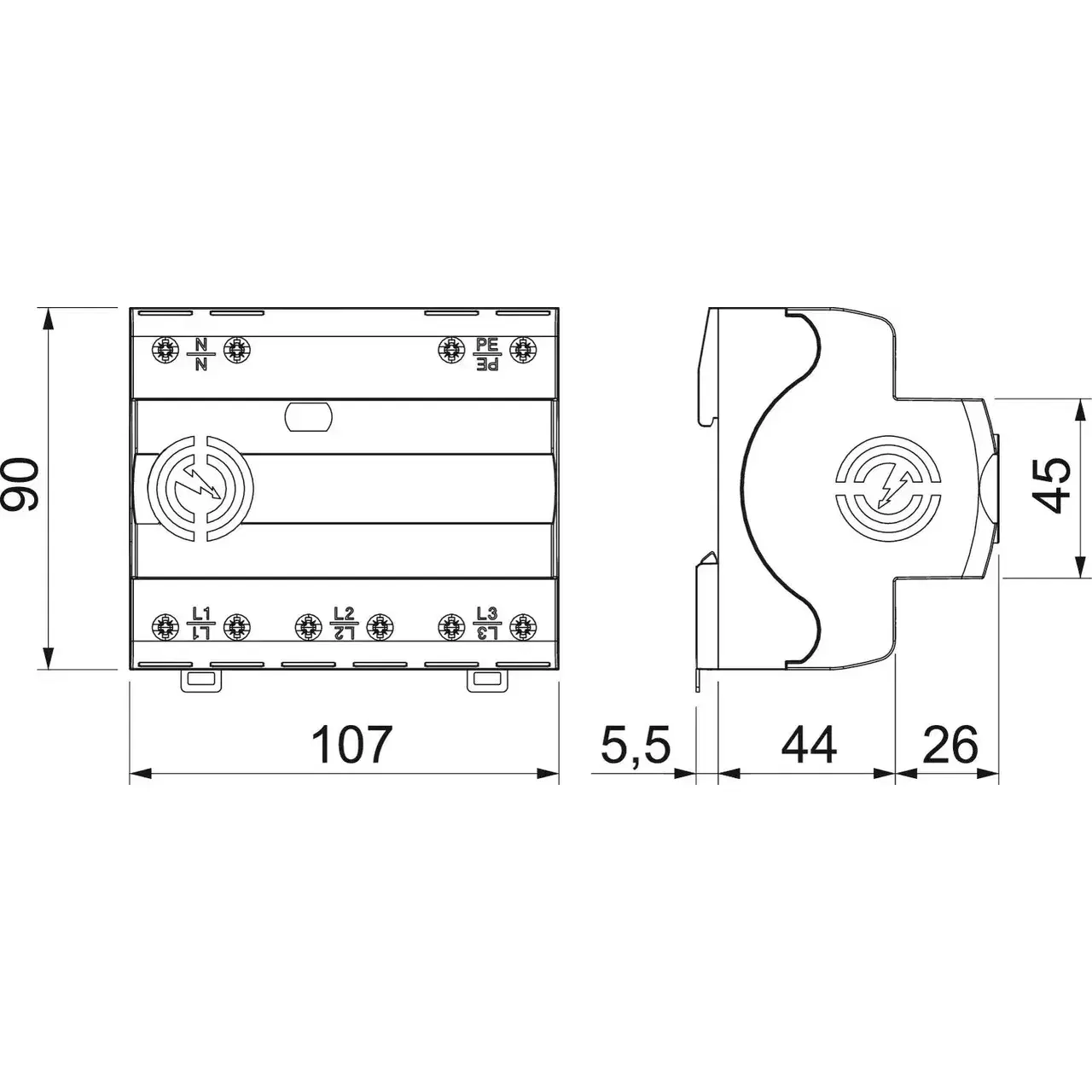

Construction size8 modular spacing
Max. conductor cross section solid (solid, stranded)35mm²
Max. conductor cross section flexible (fine-strand)35mm²
With remote signalling contactYes
Signalling at the deviceOptic
Category type 1Yes
Degree of protection (IP)IP20
